How to measure - mesh curtain - stainless steel header

We will make your mesh curtain to the dimensions you provide.

The stainless steel header rail provides 2 fitting options either:

Face fitting to the framework above your door opening or to the wall if you wish to cover a whole door recess.

Reveal fitting to the lintel (see height diagram below)

WIDTH MEASUREMENT

Ensure your curtain overlaps the framework / wall to either side (ideally by 30mm+) but where you are fitting into a recess allow yourself a little tolerance either side - see Fig 1. below.

To ensure correct fitting of the mesh strips the header rail must be cut between the hooks (please see Fig 2. below) therefore the curtain can only be made to the specific widths provided in the drop down box. Please select the nearest width available bearing in mind the above instruction.

Fig 1.

Fig 2.

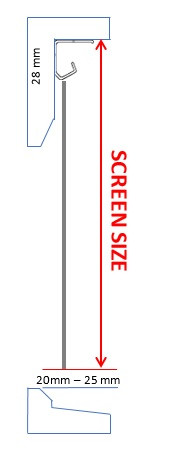

HEIGHT MEASUREMENT

The height measurement is from the top edge of the header rail to the bottom of the mesh strips. Provide a 20-25mm allowance from the floor or door threshold to enable the strips to swing freely.
