MagneShield® Magnetic Air Intake Screens

Made-to-measure magnetic air intake screens.
Simple magnetic fitting.

Attach to suitable magnetic casings without drilling.
Remove easily for cleaning and maintenance.

MagneShield® magnetic air intake screen features

• Powder coated aluminium frame with crimped corners for maximum strength.
• Available in White or Anthracite Grey, with colour coating available to match a range of RAL colours.
• Internal high strength Neodymium magnets located for maximum holding power.
• High quality, long lasting washable UV protected mesh, available with an ultra-fine option.
• Made to measure in any size required.
• Standard and Heavy Duty frame options to suit specific requirements.

Made-to-measure magnetic air intake screens

MagneShield® provides a removable barrier against leaves, insects, seeds, pollen and other airborne debris. Each installation is assessed against the equipment, intake geometry, available magnetic contact area and maintenance requirements. Mesh selection also takes account of the contamination present and the system’s airflow requirements.

From a single intake to multiple panels across larger cooling plant, screens are manufactured to suit the installation.

Frame and mesh options for your air intake screens

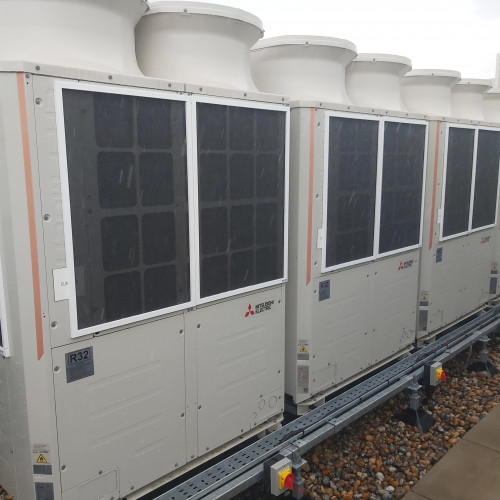

Standard frames for smaller air intakes

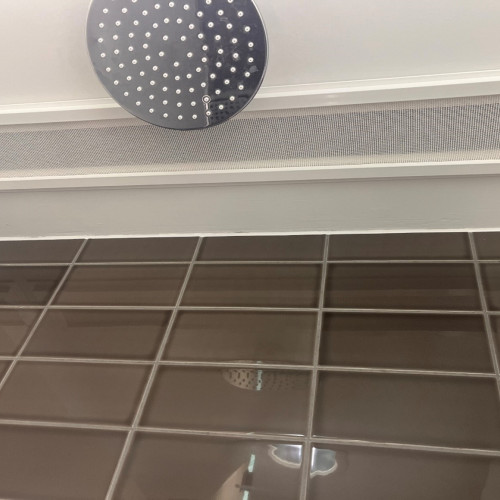

For small to medium-sized installations, including suitable AHU intakes, condenser units, external intakes and internal vents.

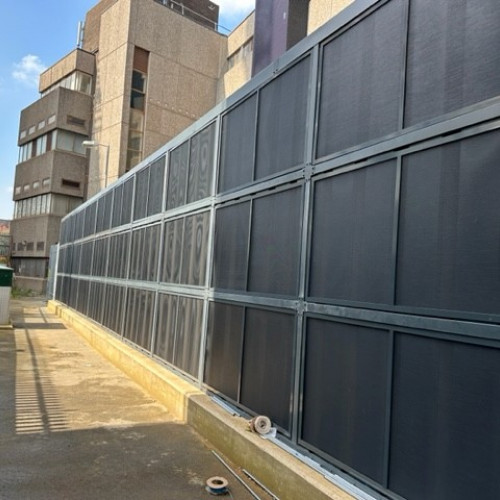

Heavy Duty frames for larger intake screens

For larger intake areas and multi-panel arrangements. Heavy Duty screens can be positioned side by side or end to end to cover larger surfaces, with the fixing configuration assessed for the casing and panel layout.

Standard mesh for general airborne debris

For general intake protection where larger airborne debris is the principal concern.

Ultra-Fine mesh for finer airborne debris

An alternative where finer airborne debris is a concern, subject to assessment of the required capture characteristics and airflow implications.

Frame duty and mesh grade are separate selection decisions. Streme can advise on the appropriate combination for your application.

No-drill magnetic fixing: check intake compatibility

Magnetic fixing depends on the casing material, available contact surface and installation layout.

Before specifying MagneShield®, consider:

• Casing material and magnetic suitability.
• Available contact area around the intake.
• Intake dimensions and panel arrangement.
• Obstructions, access panels and service clearances.
• Site exposure and equipment operating conditions.

Magnetic intake screens for chillers, condensers and HVAC equipment

MagneShield® can be manufactured for suitable installations including:

• Air-cooled chillers.
• Condenser units and coil faces.
• Air handling units.
• Cooling tower intakes.
• Rooftop HVAC plant.
• External commercial and industrial air intakes.

Applications include data centres, commercial buildings, healthcare estates, universities, manufacturing facilities and facilities management portfolios. Suitability is assessed for the individual equipment and installation, not by sector alone.

MagneShield® air intake screen installations

Data centre cooling plant protection - Nationwide, Berkshire

Streme supplied and fitted made-to-measure Heavy Duty MagneShield® screens to cooling plant intakes at Nationwide Building Society’s data centre.

The installation used Standard Mesh, Anthracite Grey frames and a magnetic fixing arrangement configured around the existing casing and adjoining panels. Screens provided coverage across the coil intake faces while retaining removable access for maintenance.

Chiller intake screens - Oxford University

Streme supplied and fitted Standard and Heavy Duty intake screens to chiller installations affected by pigeon-related contamination, including feathers, nesting material and other organic debris.

Screens were manufactured to suit the individual units and provide a removable barrier in front of the coil faces.

Removable air intake screens for cleaning and maintenance

MagneShield® panels can be removed for inspection, approved cleaning and access to the equipment behind them. Cleaning methods and inspection frequency should reflect the supplied mesh, contamination levels and site maintenance arrangements.

Designed and manufactured by Streme

Streme designs, manufactures and supplies made-to-measure screening solutions for commercial and industrial applications. MagneShield® combines specialist screen manufacture with application advice, bespoke sizing, supply and fitting options.
