High Quality Solar Screen Kit for Sliding, French and small Bi-fold doors. FREE UK mainland delivery. Keep your door open, reduce heat, let fresh air in and keep insects out!
Print this page
This system is designed to fit into the door 'reveal' i.e. between the side walls of a door opening and the top sill and floor. The height H is the distance from the underside of the top sill to the floor. The width W is the measurement between the two side walls of the reveal.
We advise taking 3 measurements for both height (left, middle
& right) and width, (top, middle & bottom) to allow for any
variations. In each case take the smallest measurement to determine your
As long as your reveal measurements fall within a kit size, that kit will be suitable; e.g. if your door is W 1700 x H 2000, the smallest kit (Width 1900mm x Height 2040mm) will be right for you.
This kit will make a high quality double sliding solar screen for French Doors, Sliding Doors or small Bi-folds.. Fitted with our tried and tested SunTex® mesh. These screens will block up to 80% of the sun’s heat and about 75% of the UV whilst allowing fresh air to flow into your room. And they stop those annoying insects as well.
If you need to keep midges out please look at our Fly Screen section. Our 30 x 20 Genuine Midge Mesh also reduces heat from the sun by up to 65%.
The sliding panels glide smoothly along the twin track, one behind the other, to allow entry and exit through your door. Pile to the back of the front screen provides a complete all round seal. Clips at the top of the panel allow it to be removed for cleaning or storage in the cooler months
You can choose a White, Anthracite Grey or Brown frame and we also offer a colour coating service if you need to match a specific paint colour.
This screen represents a wise investment if you’re looking for a good long-term solution rather than a cheap short-term fix. The frames will last for many years and the mesh can be replaced if needed.
The kit is supplied with all necessary screen materials, fixings, a spline tool for fitting the mesh and a set of instructions. Most importantly - we are the end of the phone if you need some help.
Please note: To make this screen you will need to mitre-cut the aluminium frames using a mitre box and good hacksaw or preferably a mitre saw. Making also requires measuring, drilling, and screwing so we would not recommend this kit for DIY beginners. If DIY is not for you, we have a made to measure option which can be selected below.
We offer one of the UK’s best selections of Solar Screens, made at our UK factory to the utmost quality and standards. For your peace of mind, our screens come with a TWO YEAR Warranty.
The twin tracks are fitted inside the reveal to the underside of the top cill, floor and side walls. One screen panel sits to the front of the track, the other to the back and they roll/slide one behind the other when you wish to pass through the door.
When the two screens are in the closed position, the frames overlap in the middle and a pile seal to the rear of the front screen creates a sealed system.
The ‘how to measure’ tab gives advice on measuring and other factors that may determine how the screen is fitted.
• SunTex® mesh – woven polyester with a Vinyl coating.
• Light-weight but strong powder coated aluminium frame - available in White, Brown or Anthracite Grey.
• Metal corners for strength and shape retention.
• Drop down clips allow easy screen panel removal for storage in the cooler months.
• Panel glides effortlessly one behind the other to give easy access through the door.
• Weather-proof for inside/outside use.
• Full instructions for assembly and installation.
• Two year warranty

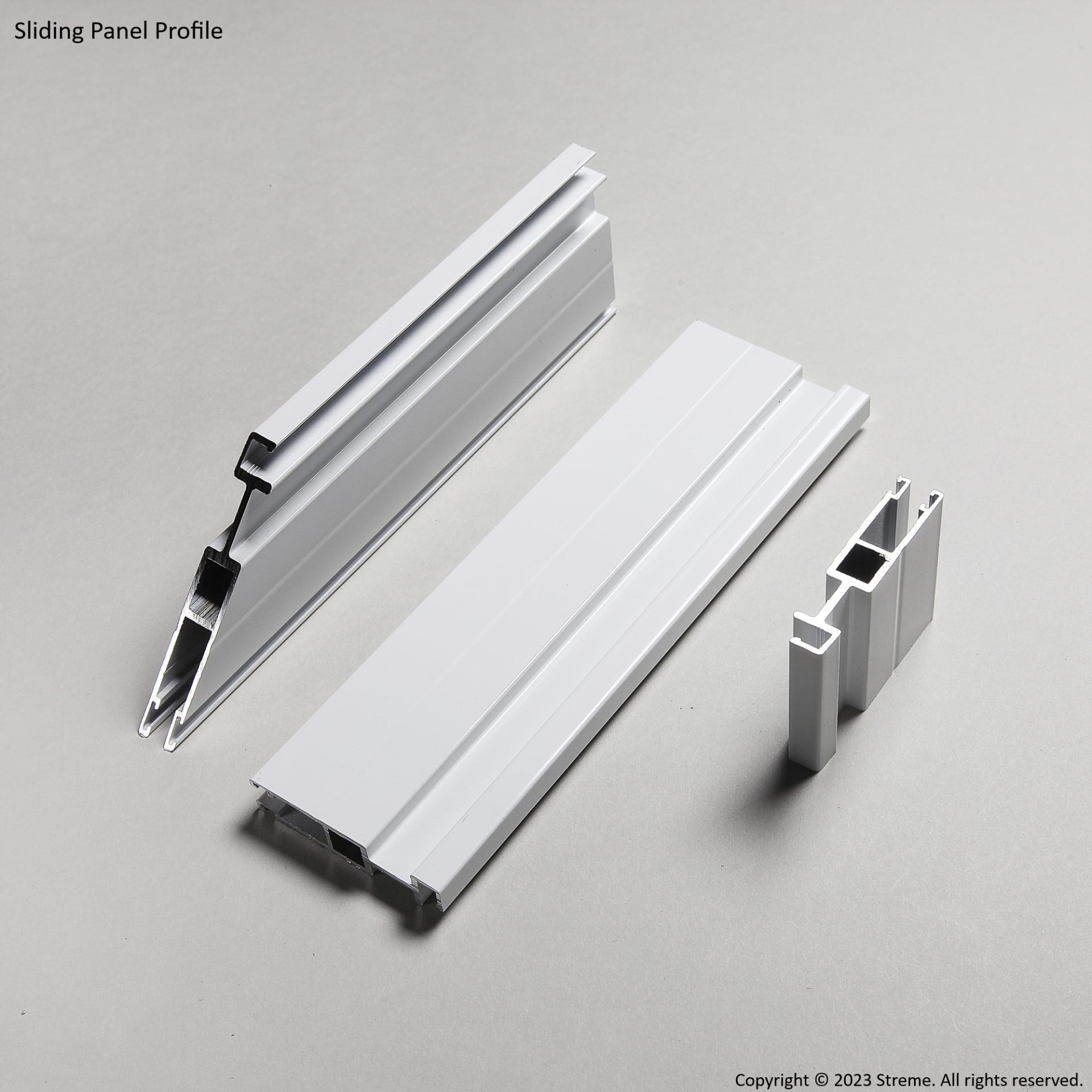

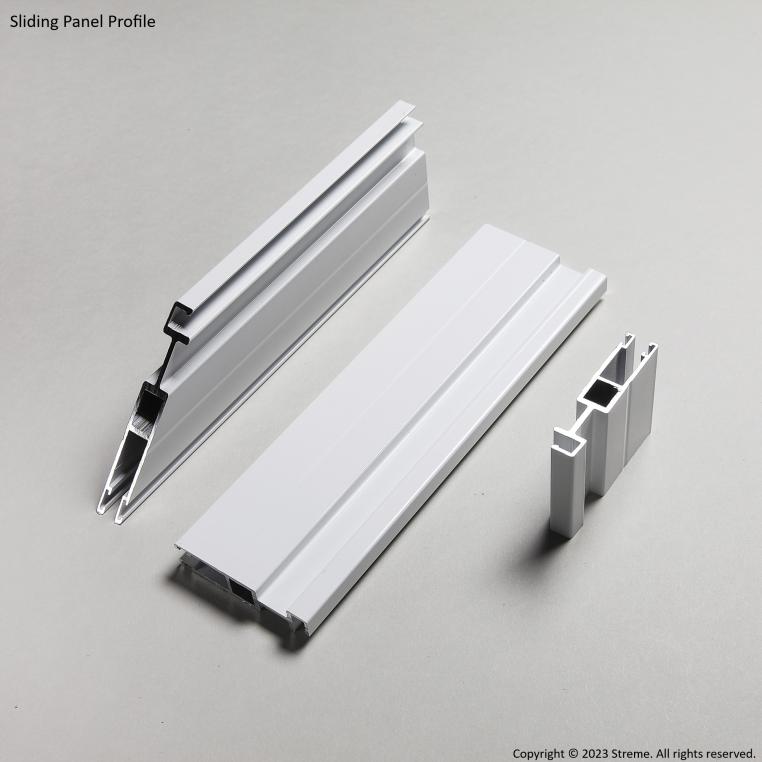

• Lengths of aluminium frame for sliding panels (as per chosen colour)
• Lengths of aluminium twin track (as per chosen colour)
• Metal Corners for the sliding panels and twin track
• Solar Mesh - black
• Spline to hold mesh in position
• Spline fitting tool
• Drop down clips
• Length of pile seal
• Fixings, including screws
