Pleated screens are made to the dimensions provided and shipped with fixings ready to install.
Print this page
This screen can be fitted in 2 ways. For each method of fixing we will show you:
How to measure
tw0 cassettes (each 51mm wide) are fitted into the top of the reveal and the floor using two
tabs and screws,

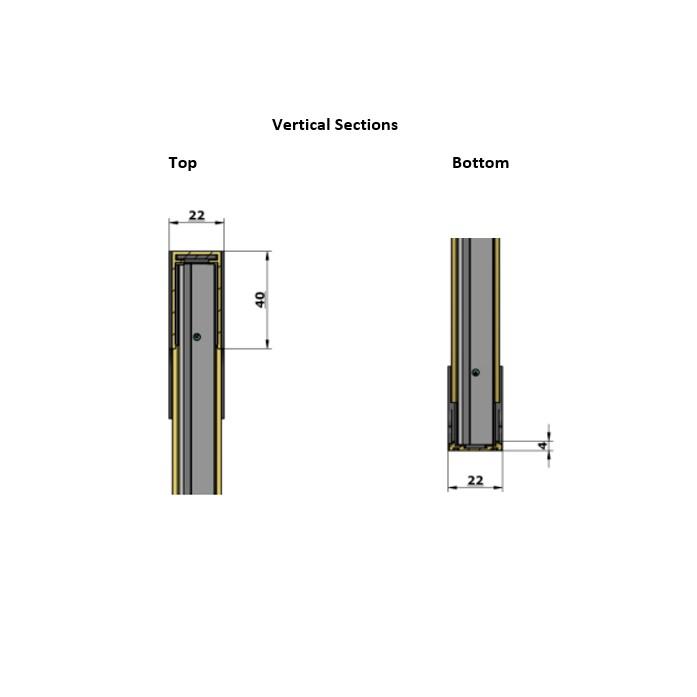

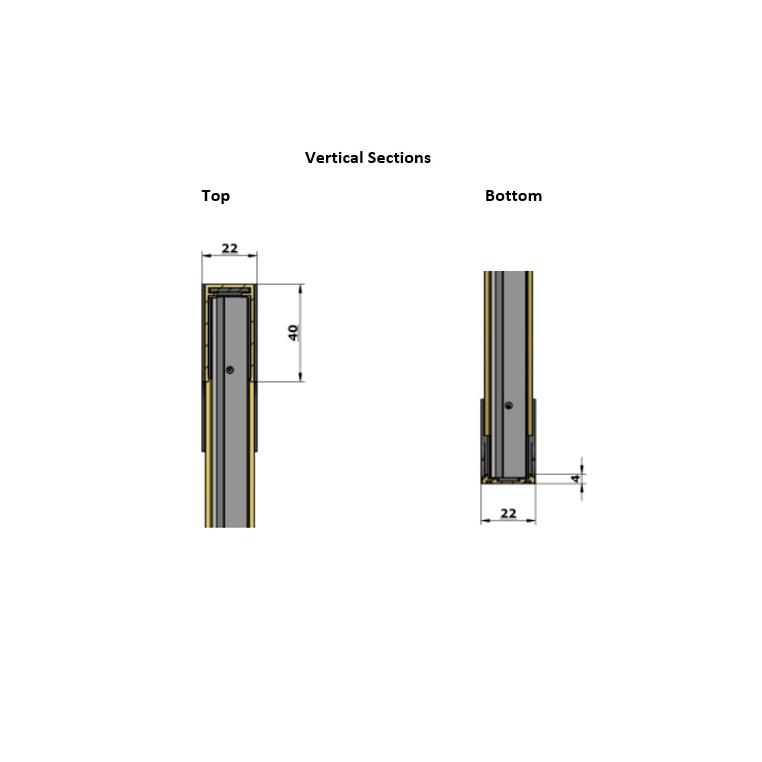

The two guides (both 40mm high) are screwed into to the underside of the reveal and the floor. For low thresholds, a 22mm bottom guide is available. as an option.We advise taking 3 measurements for both width (top, middle & bottom) and height (left, middle & right) to allow for any variations. In each case use the smallest measurements for your final width and height. We will make your screen to these sizes.
How to measure
two cassettes are fitted to the side door frames using brackets fitted to the side of the cassette. The
total width of the cassette + brackets is 66mm.
The top and bottom guides (both 40mm high) slot into the ends of the cassettes and are fitted to the upper and lower door frames.. For low thresholds, a 22mm bottom guide is available. as an option.
We will make your screen with the maximum outer dimensions to be the measurements provided..

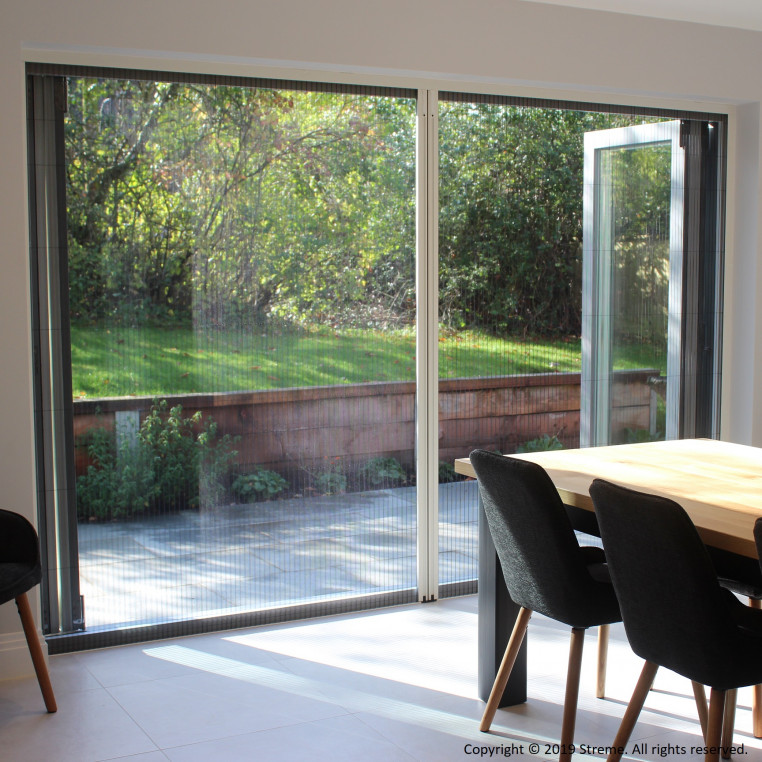

Pleated fly screens with horizontal movement,
Smooth and easy movement, not spring-loaded
Keeps out flies, wasps, mosquitoes, moths and other unwanted insects.
Supplied made-to-measure and supplied with fixings ready to install
The pricing depends on the size of the screen, and is shown at the top of the page once the width and height have been entered.
Your screen will be supplied, so that when fitted, the overall screen size will match the dimensions provided.
PLEASE ENSURE THE DIMENSIONS ARE ENTERED IN MILLIMETRES (mm) – see help on “How to Measure” and the conversion tool (top right) if required.
Supplied with standard insect mesh in black.
For alternative colours or mesh, or if you require a larger screen, please call us for pricing and availability
