This screen can be fitted in 3 ways. For each method of fixing we will show you:
a visualisation drawing
a how to measure drawing
options to choose from the dropdown menu
Reveal fitted
Visualisation
How to measure
The head cassette is fitted between the reveal walls/to the reveal walls using two tabs and screws.
The
two side guides fit to the underside of the head cassette and rest on
the window sill. They are fitted to the inside wall of the reveal.
Locking clips are fitted to the bottom of each guide to hold the screen
down.
We advise taking 3 measurements for both width (top, middle & bottom) and height (left, middle & right) to allow for any variations. In each case take the smallest measurements for your final width and height. We will make your screen to these sizes.
Options to choose from the dropdown menu:
Fixing = Reveal fit
Do you have a window sill? = Yes
Face fitted with no closing bar
Visualisation
How to measure
The head cassette is fitted to the window frame using brackets fitted to the top of the cassette.
The
two side guides fit to the underside of the head cassette and rest on
the window sill. The are fitted directly to window frame. Locking clips
are fitted to the bottom of each guide to hold the screen down.
We
advise taking 3 measurements for both width (top, middle & bottom)
and height (left, middle & right) to allow for any variations.
In each case take the smallest measurements for your final width and
height. We will make your screen to these sizes.
Options to choose from the dropdown menu:
Fixing = Face fit
Do you have a window sill? = Yes
Face fitting with closing bar
Visualisation
How to measure
The head cassette is fitted to the window frame using brackets fitted to the top of the cassette.
The
two side guides fit to the underside of the head cassette and into a
magnetic channel fitted to the window frame on the dividing bar. The
magnet strip in the channel connects with a magnet strip on the
underside of the mesh handle bar to hold the screen down.
We
advise taking 3 measurements for both width (top, middle & bottom)
and height (left, middle & right) to allow for any variations.
In each case take the smallest measurements for your final width and
height. We will make your screen to these sizes.
Options to choose from the dropdown menu:
Fixing = Face fit
Do you have a window sill? = No
Which mesh do I need?
We offer two types of mesh with this screen. Your choice will depend on which insects you wish to keep out.
Standard insect mesh - 18 x 16 holes per square inch.
Examples of insects this mesh will keep out:
Bees & Wasps, Bluebottles, Cluster Flies, Crane Flies, Daddy-Long-Legs, House Flies, Hornets, Ladybirds, Mosquitoes, Moths, Butterflies and Spiders.
Standard insect mesh is designed and manufactured to ensure maximum visibility (through the screen) ensuring as much light passes into the room as possible.
We recommend this mesh for all
areas of the UK except in parts of Scotland where Midges are present and other parts of the UK where Corn Flies and Thunder Bugs/Thrips are present.
Midge mesh - 30 x 20 holes per square inch
This mesh will keep out:
The same as Standard insect mesh + Midges, Corn Flies and Thunder Bugs/Thrips
Midge mesh has a tighter weave than Standard insect mesh to ensure Midges, Corn Flies and Thunder Bugs/Thrips cannot penetrate, however, the visibility and airflow is reduced slightly.
We recommend this mesh in parts of Scotland where Midges are present and other parts of the UK where Corn Flies and Thunder Bugs/Thrips are present.
Please note - genuine Midge mesh is 30 x 20 - anything less e.g. 20 x 20 or 18 x 16 will not keep midges out.
Measurement Converter
Share this product:
Description

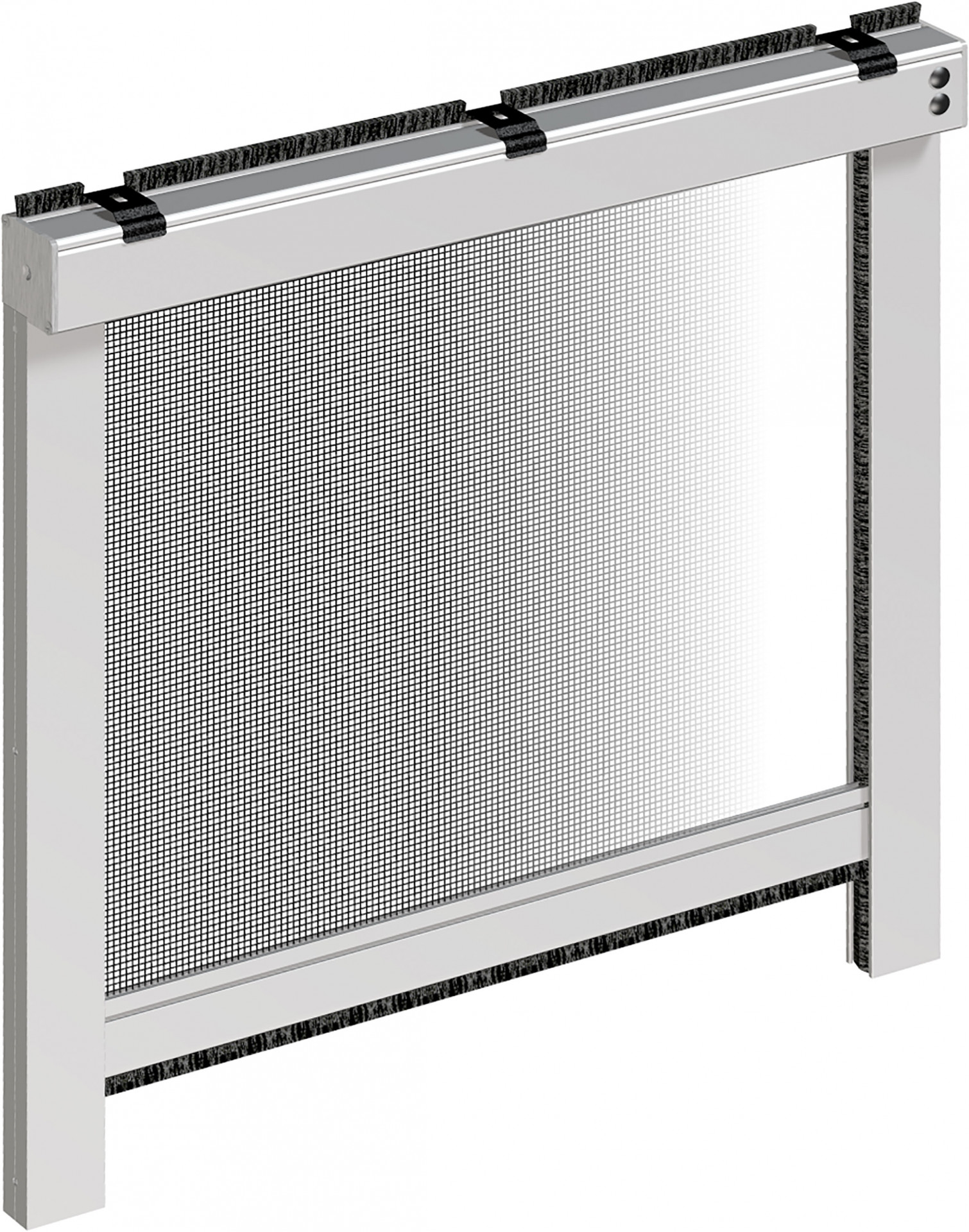

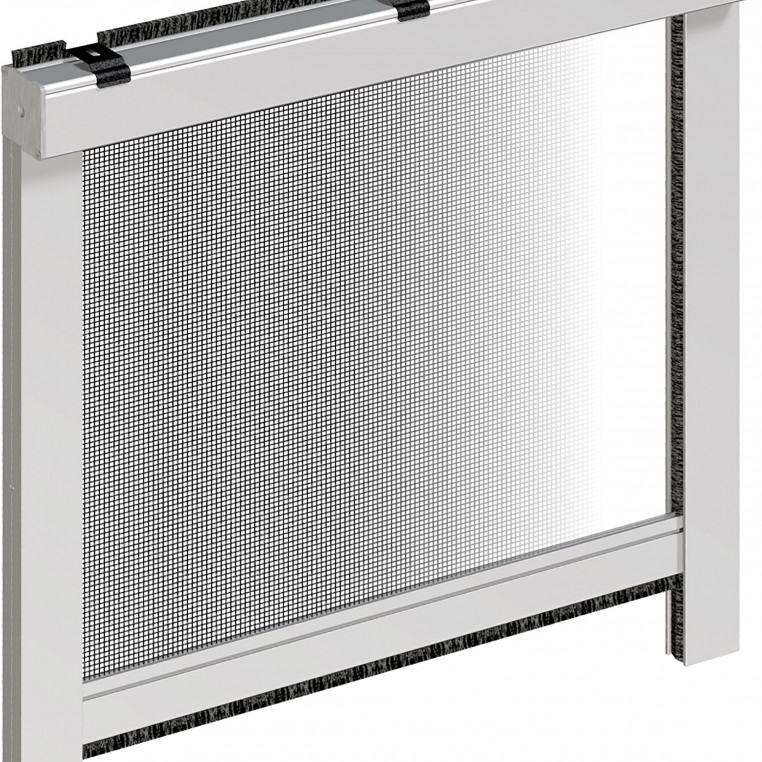

Motorised vertical roller blind style fly screen - Keeps out flies, wasps, mosquitoes, moths and other unwanted insects. Supplied pre-cut and ready to fit - Includes all fixings required to fit the screen into into the reveal, alternative fixings available to fit the screen onto the window frame Your screen will be supplied, so that when fitted, the outer edges of the screen (including brackets, if purchased) will match the dimensions entered in the boxes below. PLEASE ENSURE THE DIMENSIONS ARE ENTERED IN MILLIMETRES (mm) – see help on “How to Measure” and the conversion tool (top right) if required.
Key Features
Maximum dimensions 2000mm wide x 2600mm high

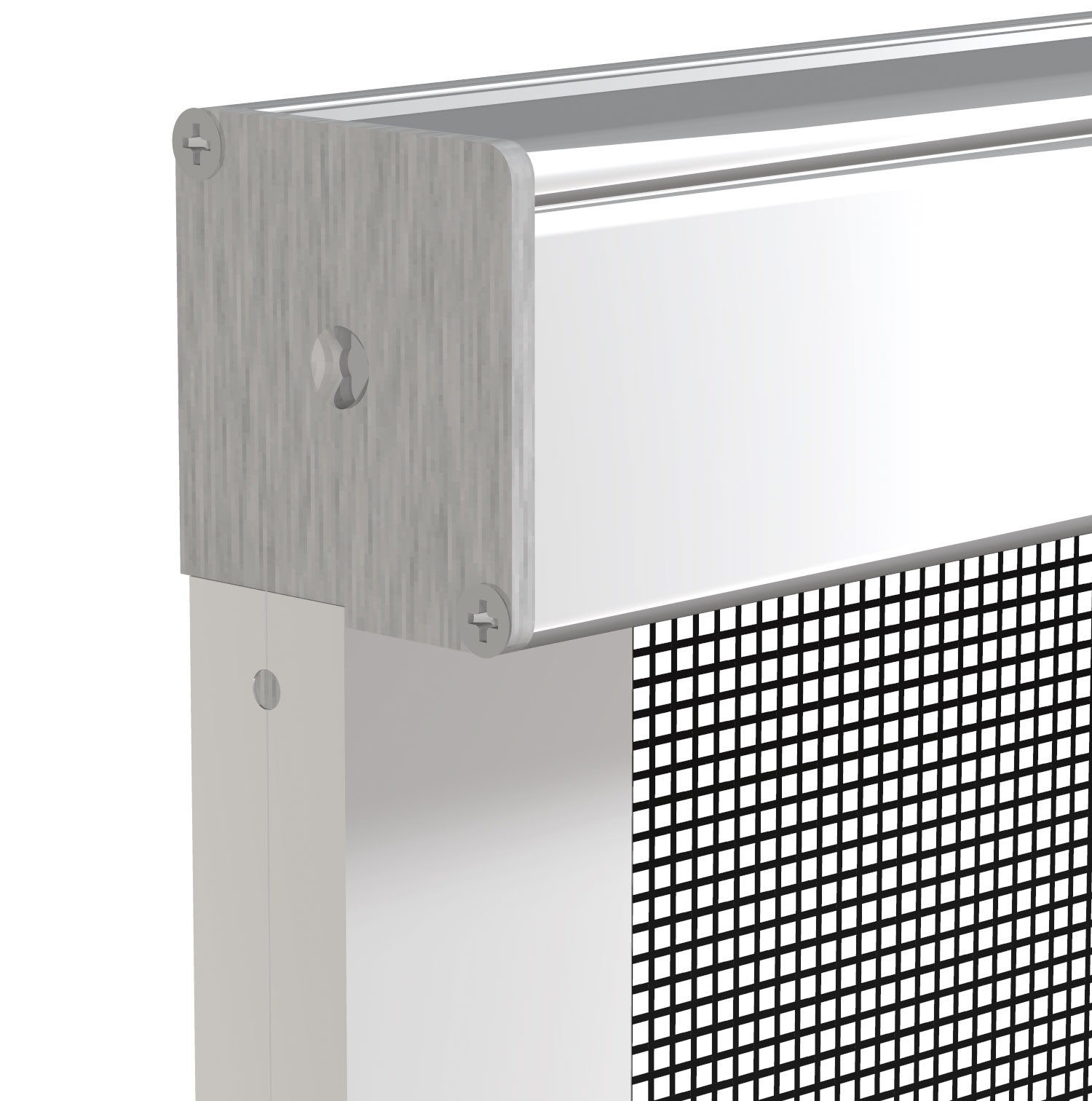

46mm x 48mm screen case
Motor positioned on right or left hand side
30 rpm 24V 0.8A motor (5 year warranty)
Upper wire outlet
50mm x 22mm guide with double brush
40mm x 8.5mm sliding bar, with integrated ballast
Standard insect mesh (18 x 16 holes per square inch) in black
Standard fitting uses 3 no. spring clips
