Butted Double Sliding Fly Screens for Doors (DIY Kit)

Product Code: 022.1

From £304.00

A DIY, self-assembly kit, with all materials supplied in standard lengths which need to be cut down to the required sizes during assembly.

View the Made-to-Measure version

Read More

  • Butted Double Sliding Fly Screens for Doors (DIY Kit)
  • Butted Double Sliding Fly Screens for Doors (DIY Kit)
  • Butted Double Sliding Fly Screens for Doors (DIY Kit)

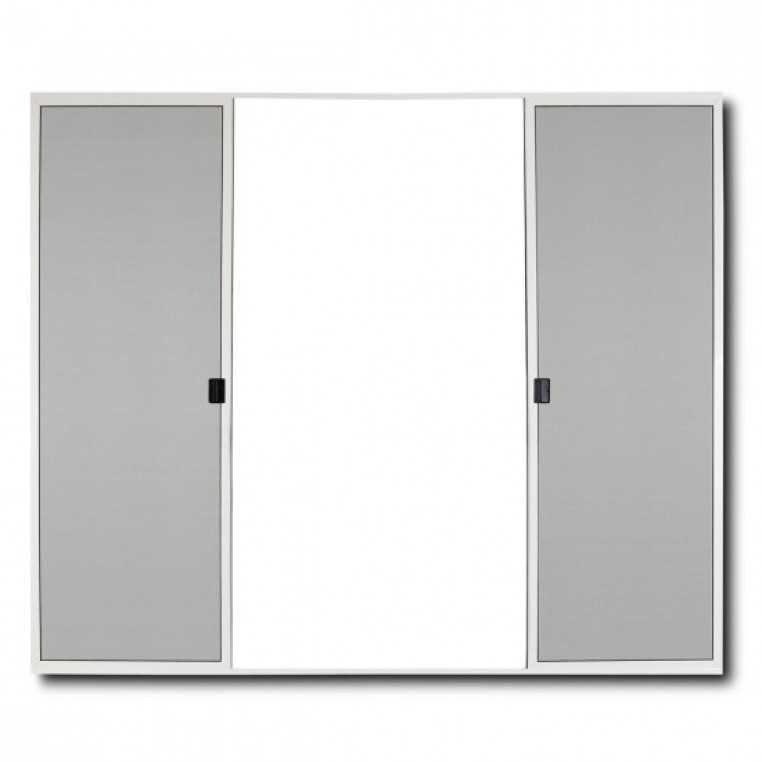

A DIY kit to make a butted double sliding fly screen, designed to screen french doors with fixed panels on either side. The butted slider enables both screen doors to open by sliding away to either side of the main doors. Offering an effective solution to keep out flies, wasps, mosquitos, midges, moths and other unwanted insects.
Supplied as a DIY kit, which comes with a full set of instructions and all parts needed to make and fit the finished screens. Each kit makes butted double sliding fly screens for doors with casements up to 3960mm (155 7/8") wide and 2040mm (80 5/16") deep.
Genuine 30 x 20 midge mesh option also available.
For larger doors, please call us.

Key Features

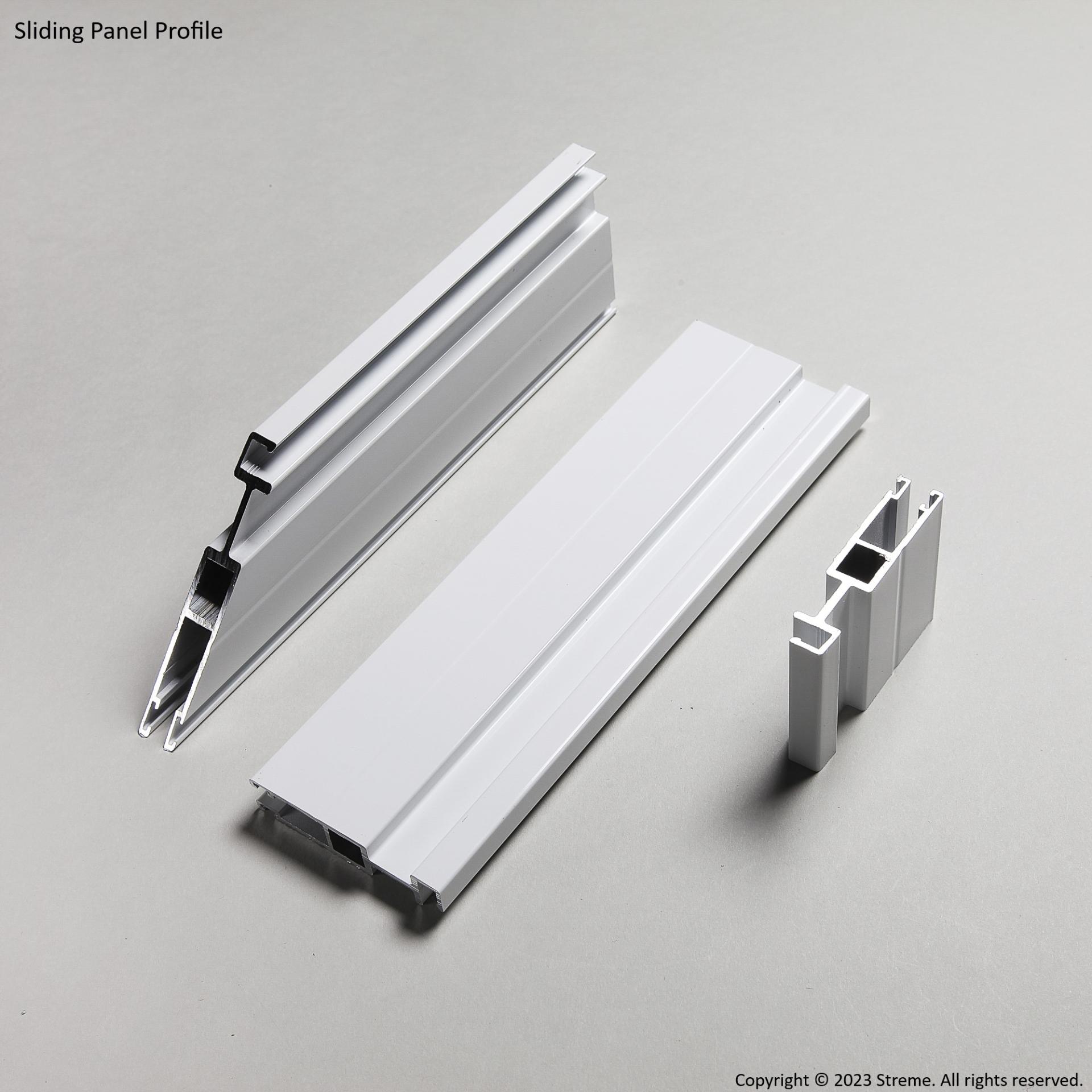

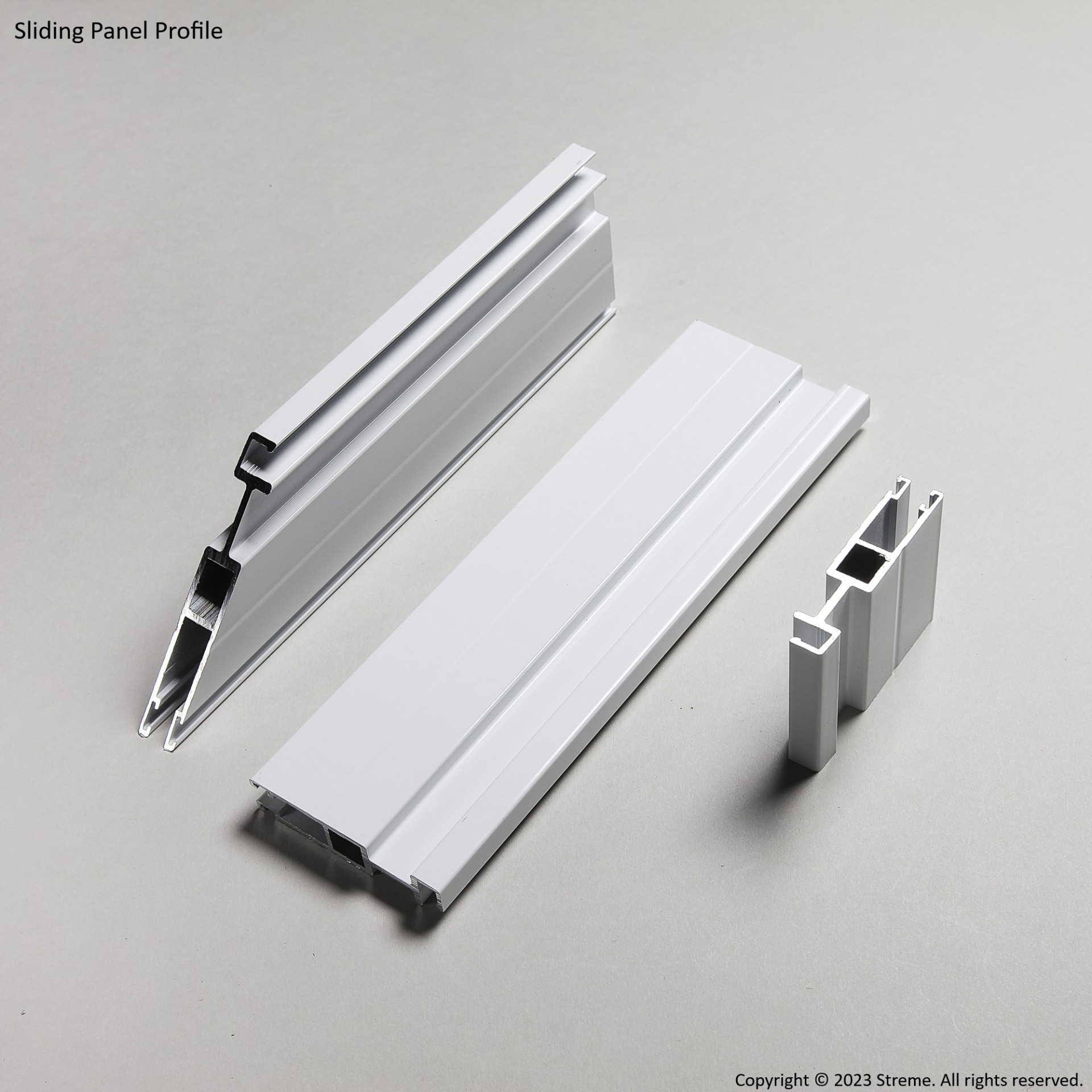

  • Strong aluminium frames, powder coated in white
  • Frame is 51mm (2") wide x 12mm (1/2") deep
  • Mitred corners with hidden steel inserts for strength and shape retention
  • Fly screen slides on solid aluminium Z tracks which are fitted directly onto the door frame
  • Screens are easily removable for storage (e.g. in winter)
  • Installation depth (front to back) 16mm (5/8")
  • Seals on vertical door edges
  • Weather proof for inside/outside use
  • Full instructions for assembly and installation
  • 1 YEAR GUARANTEE on frame, corners, and track

Kit Contents

  • Lengths of aluminium frame - two pieces with integrated handle
  • Lengths of aluminium track (colour matched to frame)
  • 8 steel corner inserts
  • Mesh (as per chosen option)
  • Spline to hold mesh in position
  • Spline insertion tool
  • Lengths of pile seal and PVC seal
  • Fittings, drill bit, screw driver bit and allen key
  • Instructions
