High Quality Pollution Screen Kit. For Single Doors.
The RESPILON® Clean Air window membrane protects your building from harmful particulates in the outside air.
FREE UK mainland delivery.
Print this page
For this kit please measure the height and width as per the diagram. These measurements relate to the “open space” i.e. the space created once the door is open.
As long as the width and height of your door opening are within the measurements specified for a kit, that kit will be the correct kit for you e.g. if the width of your door opening is 860mm and the height is 1990mm then the smaller kit (900mm x 2000mm) is the kit you require.
The screen frame is 40mm wide and is designed to be placed directly onto your door frame.The hinge and magnetic catch fixings sit to the side of the screen and will require additional space.
For example, on one side of your door frame you would require 40mm for the frame + 15mm for the hinge (a total of 55mm) and on the other 40mm for the frame + 10mm for magnetic catch (a total of 50mm). If you are limited for space, the screen size can be reduced by as much as 30mm each side.
If your door handle protrudes beyond the face of your door frame (i.e. the frame you will be fitting the screen to) when the door is closed, this may prevent you from fully closing the screen.
Air pollution is described as one of the worst health crisis of our time, contributing to chronic illness in children and adults and causing tens of thousands of deaths in the UK every year.
This kit will make a high quality pollution screen to fit a Single Door fitted with RESPILON® Clean Air window membrane. Now in its 5th generation, this membrane protects your building from harmful particulates in the outside air.
Offers protection from:
• Air Pollution (inc. PM1.0 and PM2.5)
• City living

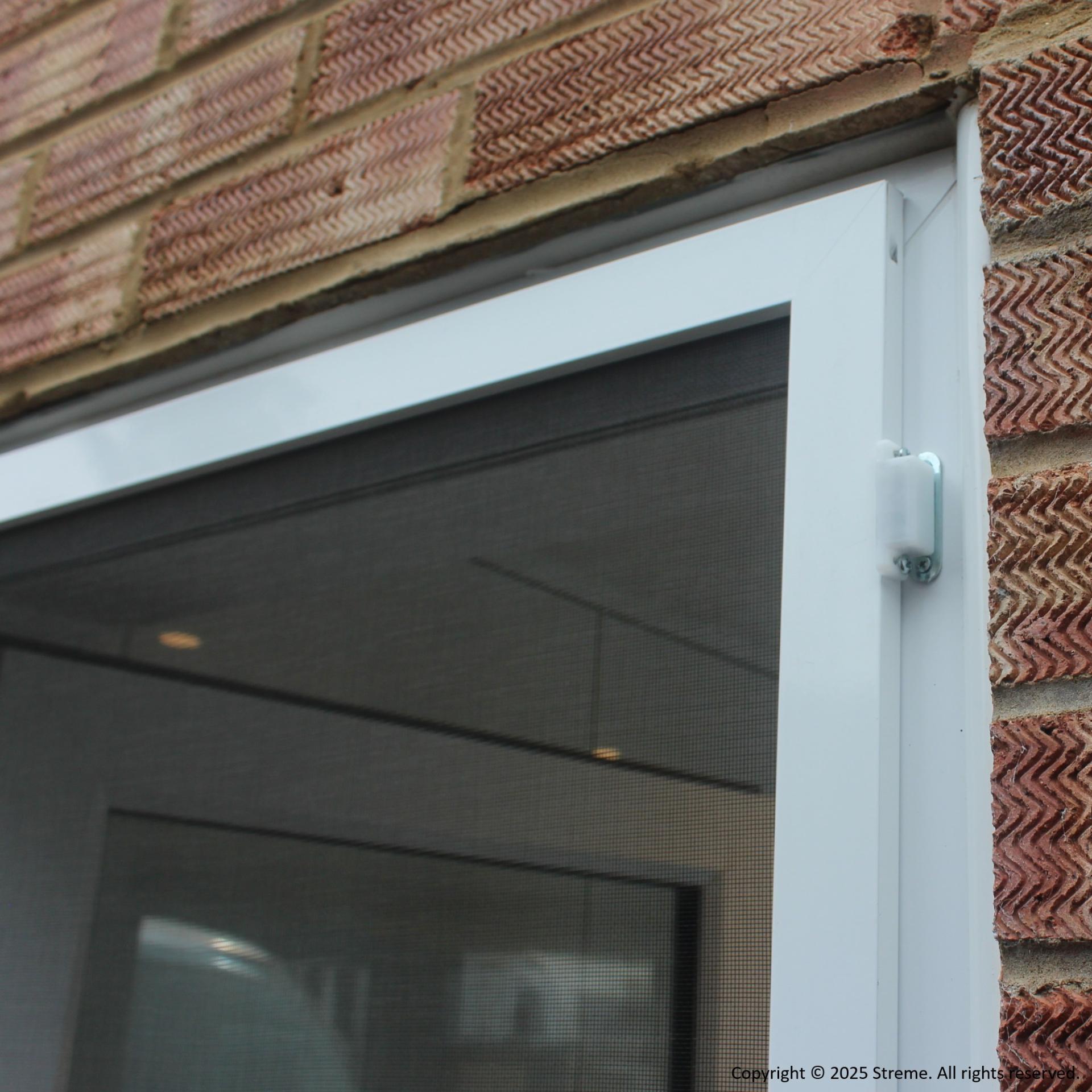

Steel hinges allow easy opening and closing, with the option to lift the screen off and store during the cooler months. A mid bar with integrated handle gives additional strength and an easy way to open and close the screen. Magnetic catches hold the screen in the closed position.
You can choose a White, Anthracite Grey or Brown frame and we also offer a colour coating service if you need to match a specific paint colour. This screen represents a wise investment if you are looking for a good long-term solution rather than a cheap short-term fix. Both the frames and membrane will last for many years, the membrane can also be removed and replaced if needed.
The kit is supplied with all necessary screen materials, fixings, a spline tool for fitting the mesh and a set of instructions. Most importantly - we are the end of the phone if you need some help.
Please note: To make this screen you will need to mitre-cut the aluminium frames using a mitre box and good hacksaw or preferably a mitre saw. Construction also requires measuring, drilling, and screwing so we would not recommend this kit for DIY beginners. If DIY is not for you, we have a made to measure option which can be selected below.
We offer one of the UK’s best selection of pollution screens, made at our UK factory to the utmost quality and standards. For your peace of mind, our screens come with a TWO YEAR Warranty.

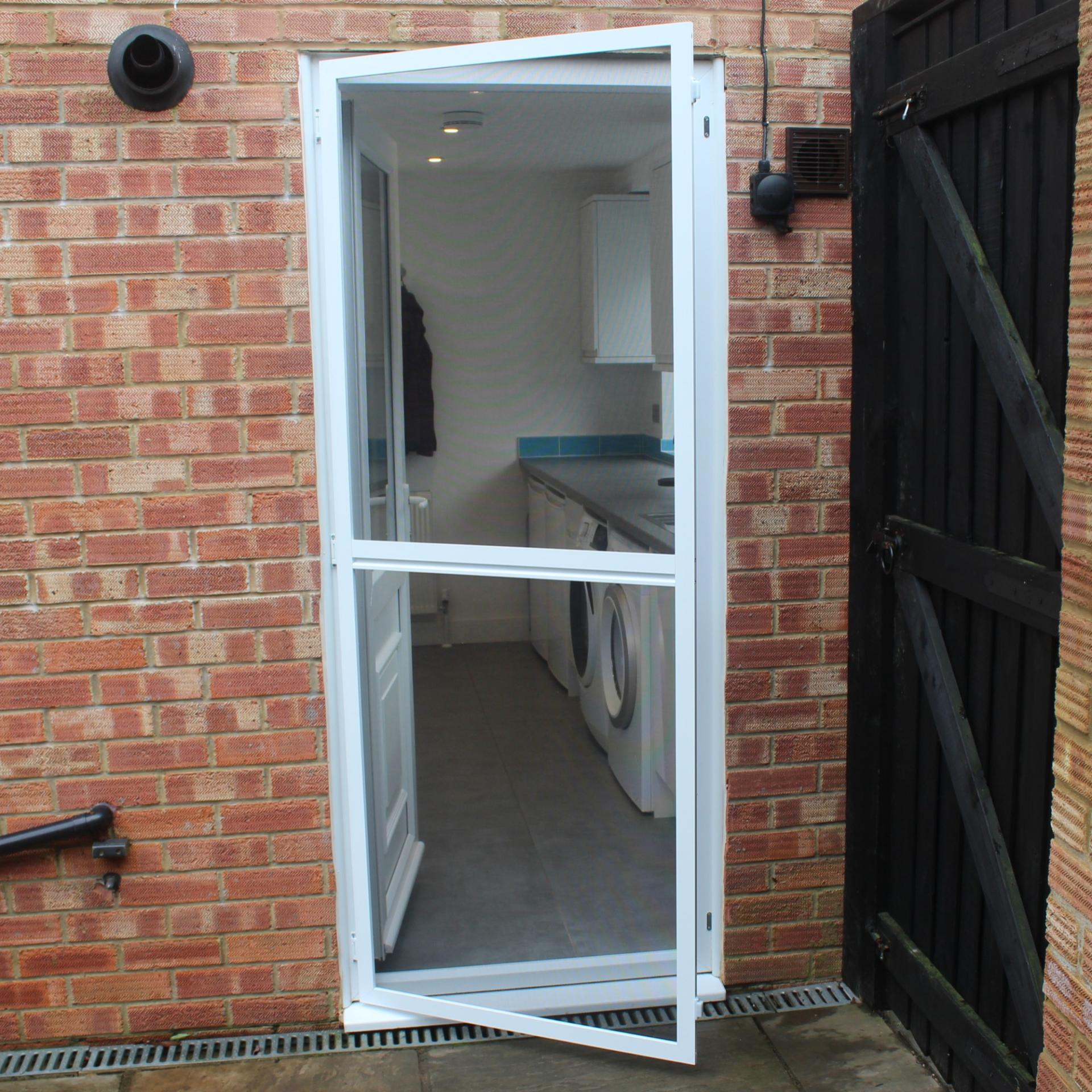

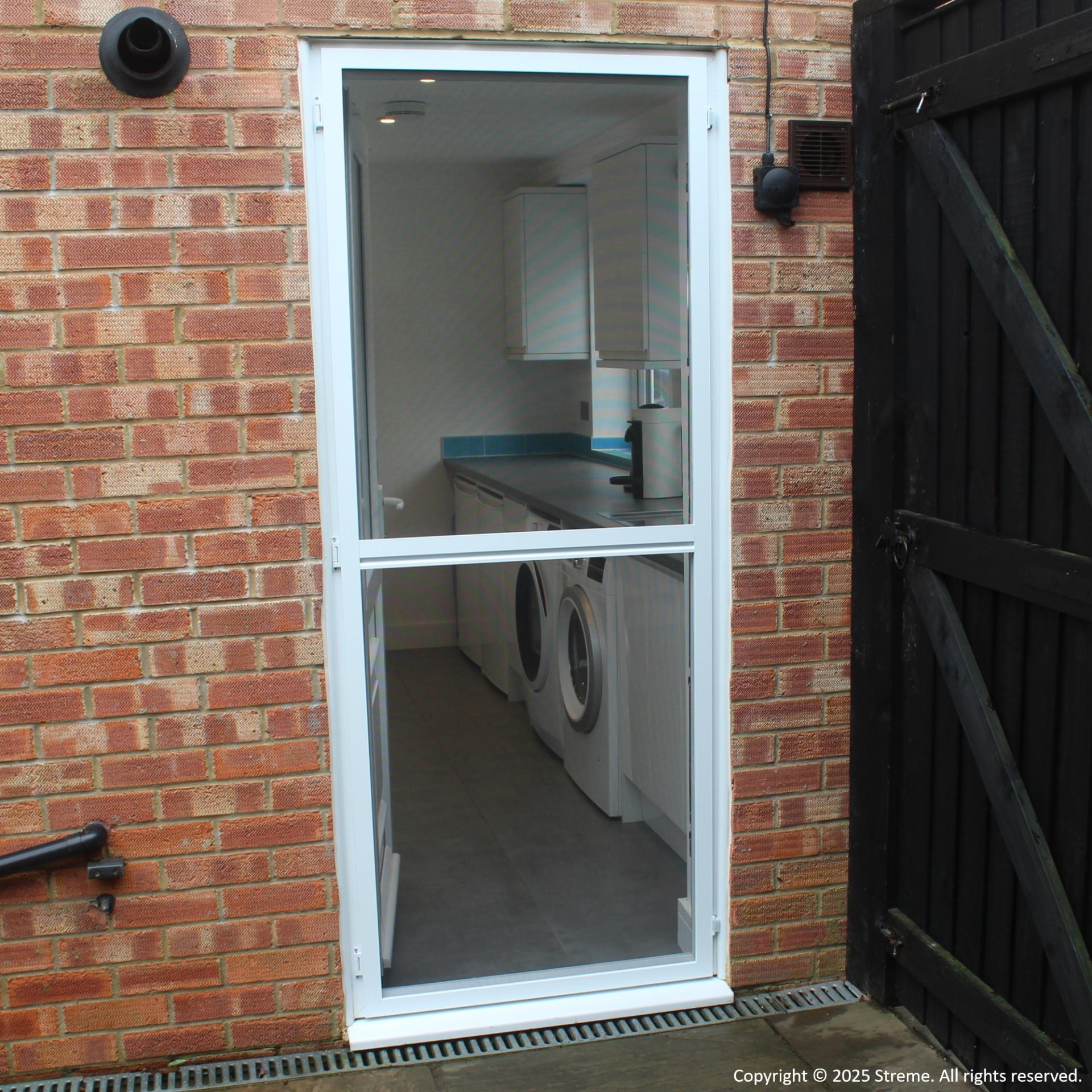

The screen is fitted directly to your door frame to create a seal between the back of the screen and the door frame and the membrane does the rest with steel lift off hinges on one side and magnetic catches on the other. When you open your door, you close the screen to cover the opening.
The ‘how to measure’ tab gives advice on measuring and other factors that may determine how the screen is fitted.
RESPILON® Clean Air window membrane.
• Light-weight but strong powder coated aluminium frame - available in White, Brown or Anthracite Grey. Frame is 38.5mm (1 1/2") wide x 12.5mm (1/2").
• Metal corners for strength and shape retention.

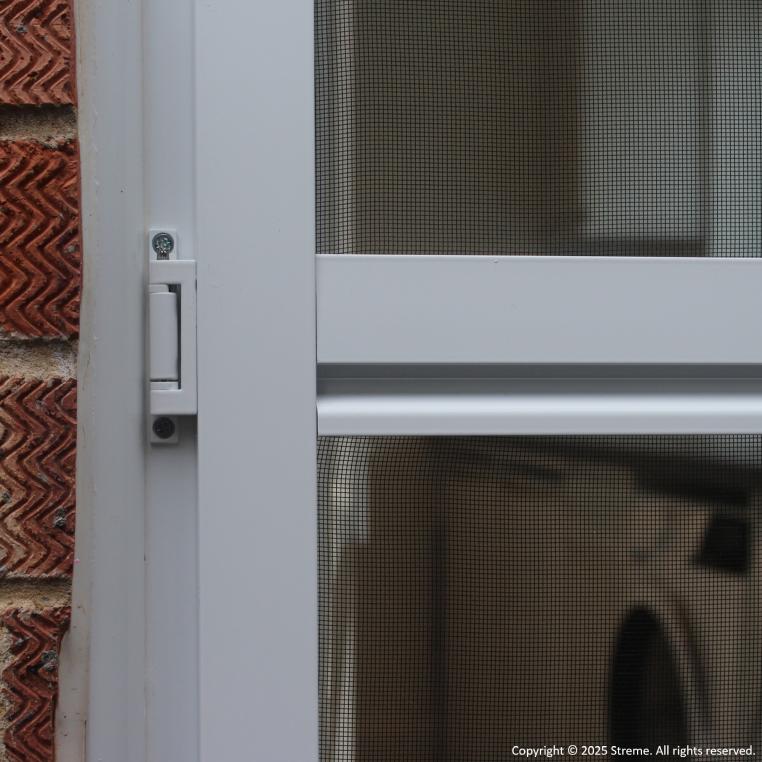

• Mid-bar for additional strength with integrated handle.
• Lift-off steel hinges allow easy removal for storage in the cooler months.

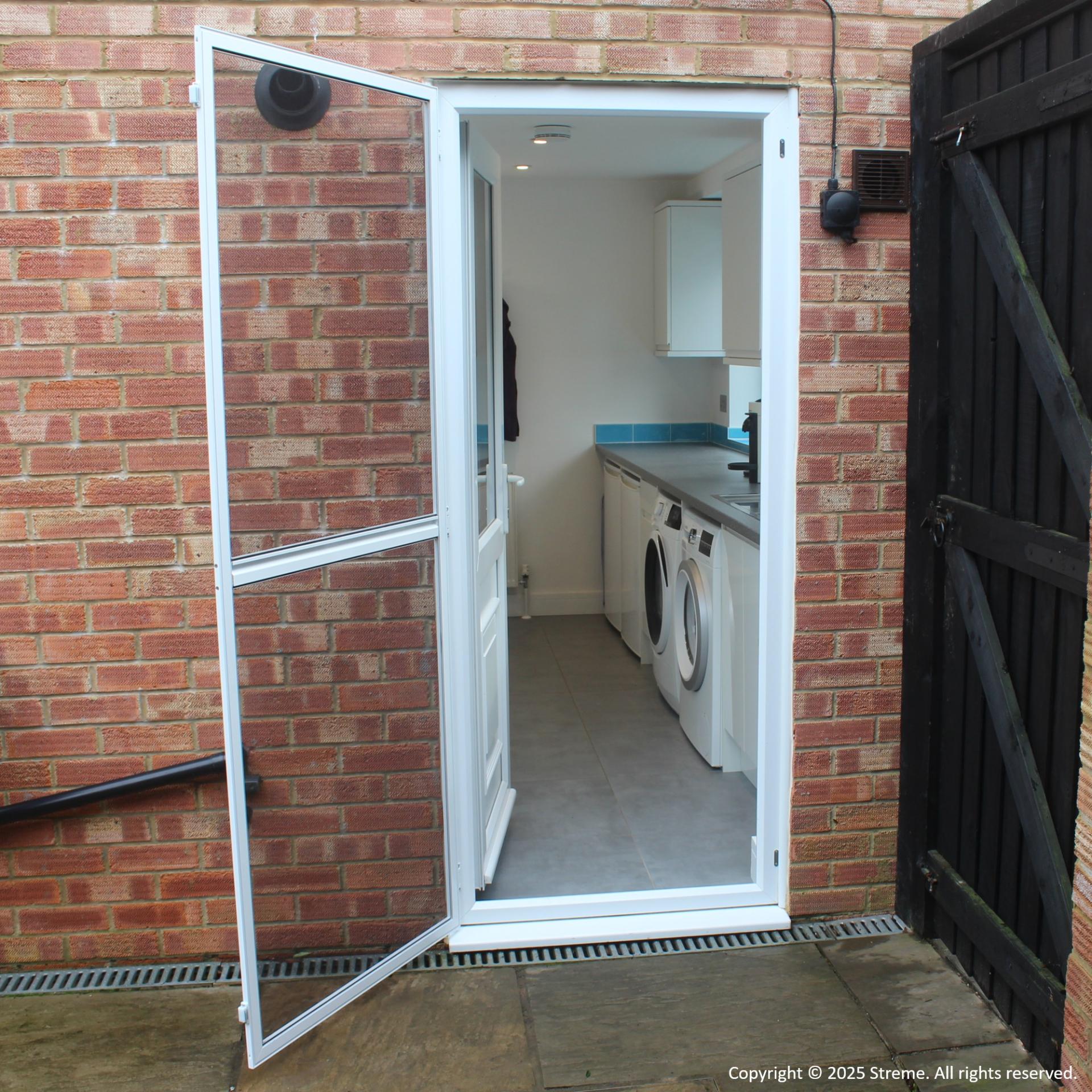

• Opens 180 degrees if required.
• Weather-proof for inside/outside use.
• Full instructions for assembly and installation.
• 2 Year Warranty.
• Lengths of aluminium door screen frame
• Length of aluminium mid-bar with integrated handle
• Metal corners
• RESPILON® Membrane
• Spline to hold mesh in position
• Spline fitting tool
• Steel lift off hinges
• Magnetic catches
