Roller screens are made to the dimensions provided and shipped with fixings ready to install.
Print this page
This screen can be fitted in 2 ways. For each method of fixing we will show you:
How to measure

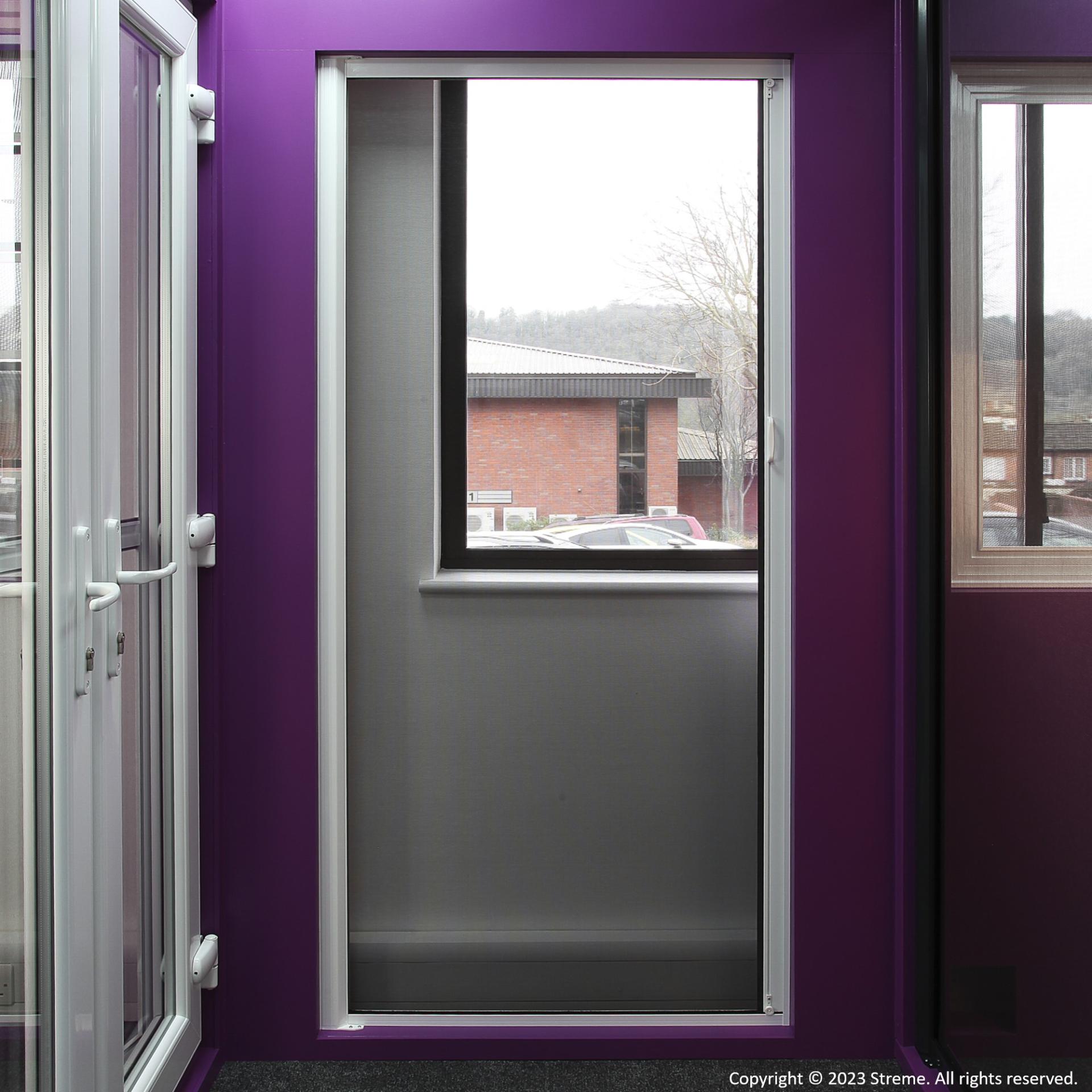

The cassette (51mm wide) is fitted into the top of the reveal and the floor using two tabs and screws - usually positioned on the same side as the door is hinged. The closing channel (22mm wide) is fitted to the opposite reveal wall using screws.

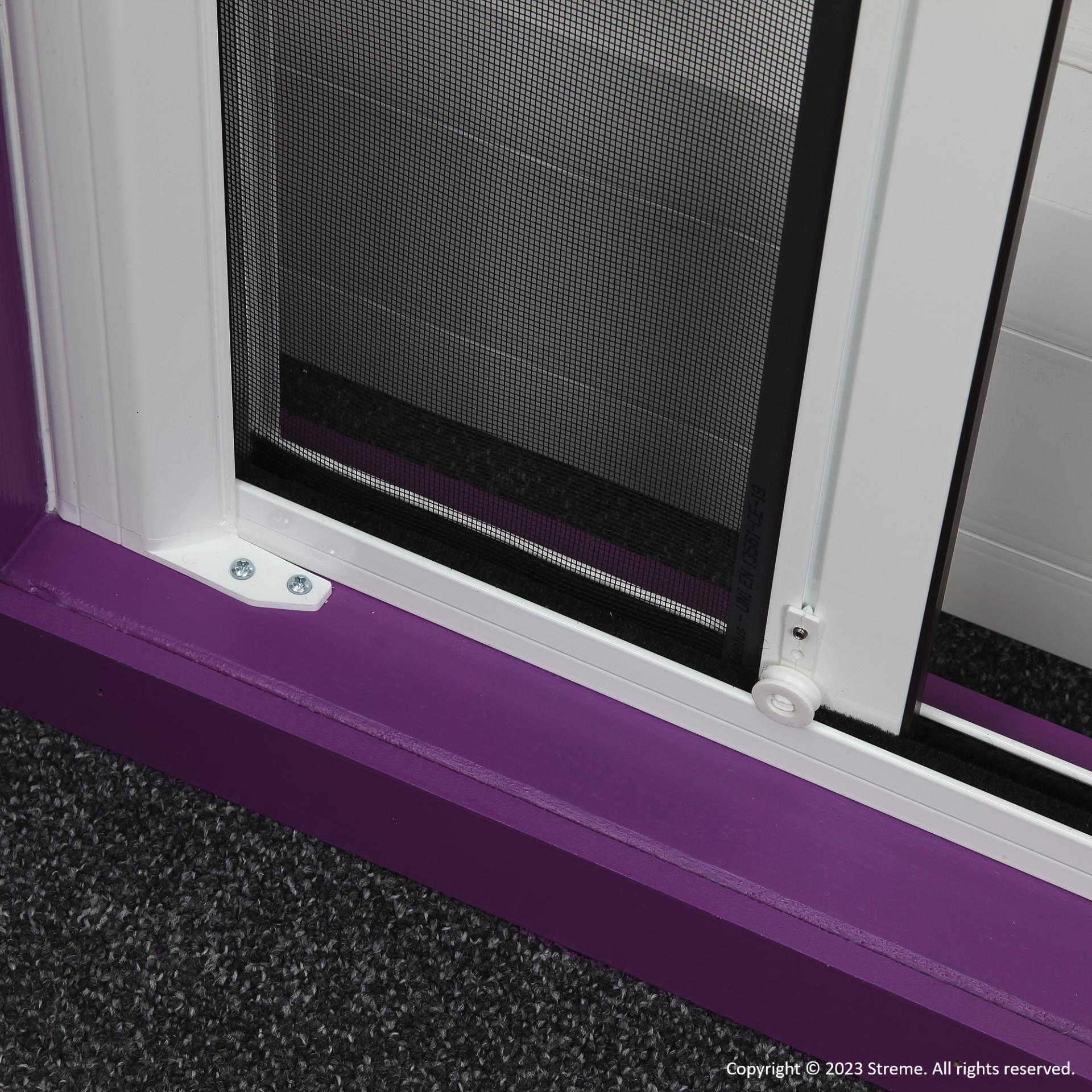

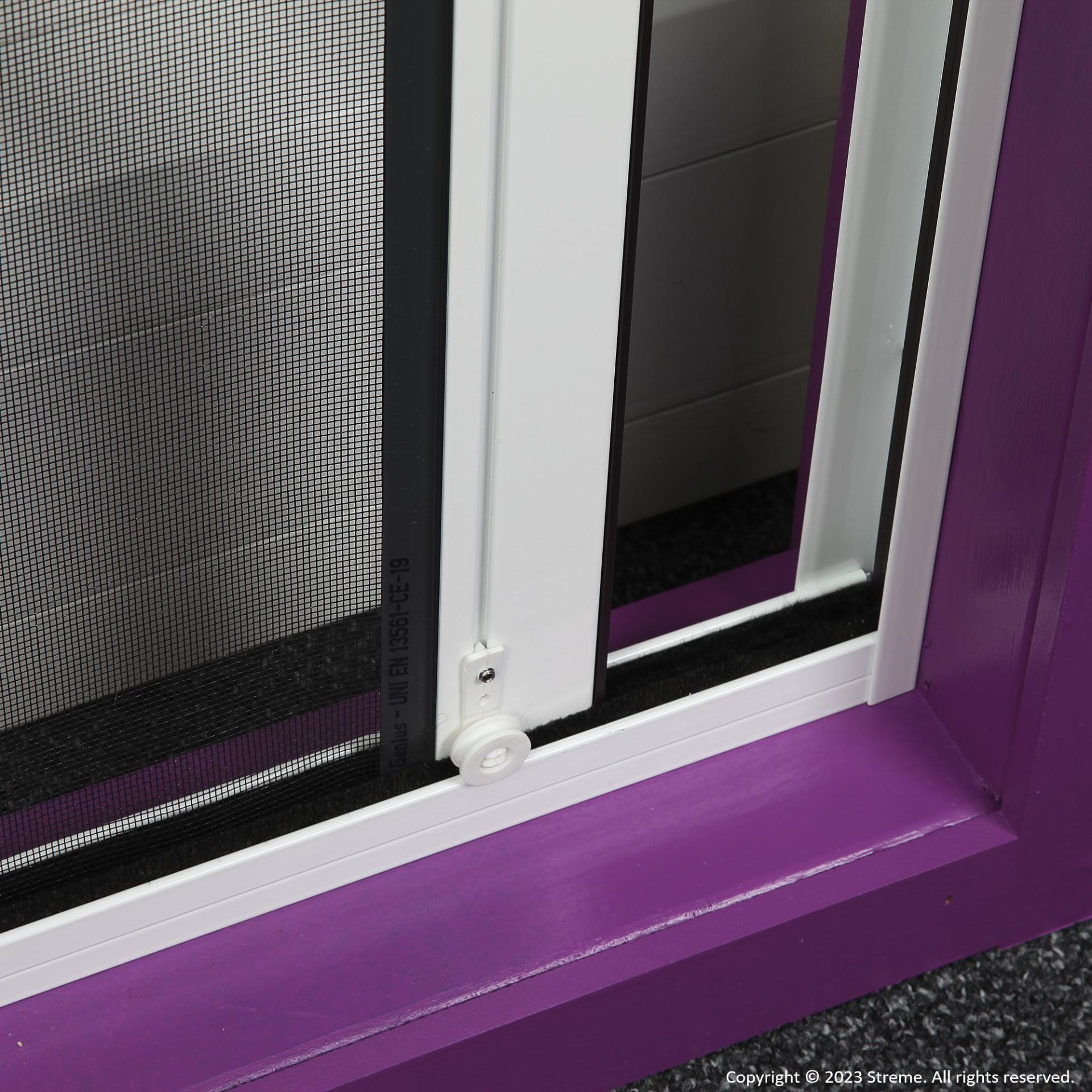

two guides (both 40mm high) are screwed into to the underside of the reveal and the floor. For low thresholds, a 22mm bottom guide is available. as an option.
We advise taking 3 measurements for both width (top, middle & bottom) and height (left, middle & right) to allow for any variations. In each case use the smallest measurements for your final width and height. We will make your screen to these sizes.
How to measure
The cassette is fitted to the side door frame (usually positioned on the side the door is hinged) using brackets fitted to the side of the cassette. The total width of the cassette + brackets is 66mm.
top and bottom guides (both 40mm high) slot into the ends the cassette and are fitted to the upper and lower door frames. For low thresholds, a 22mm bottom guide is available as an option.
The closing channel (22mm wide), is fitted directly to the door frame.on the opposite side of the door to the cassette.
We will make your screen with the maximum outer dimensions to be the measurements provided..
Print this page
FITTING INTO A REVEAL/RECESS:
If the screen is to be fitted to seal off the whole of the reveal/recess, then the pricing quoted includes all the fixings required.
If the screen is to be fitted onto the door frame, then face fitting brackets are required. The additional cost is shown when this option is selected.

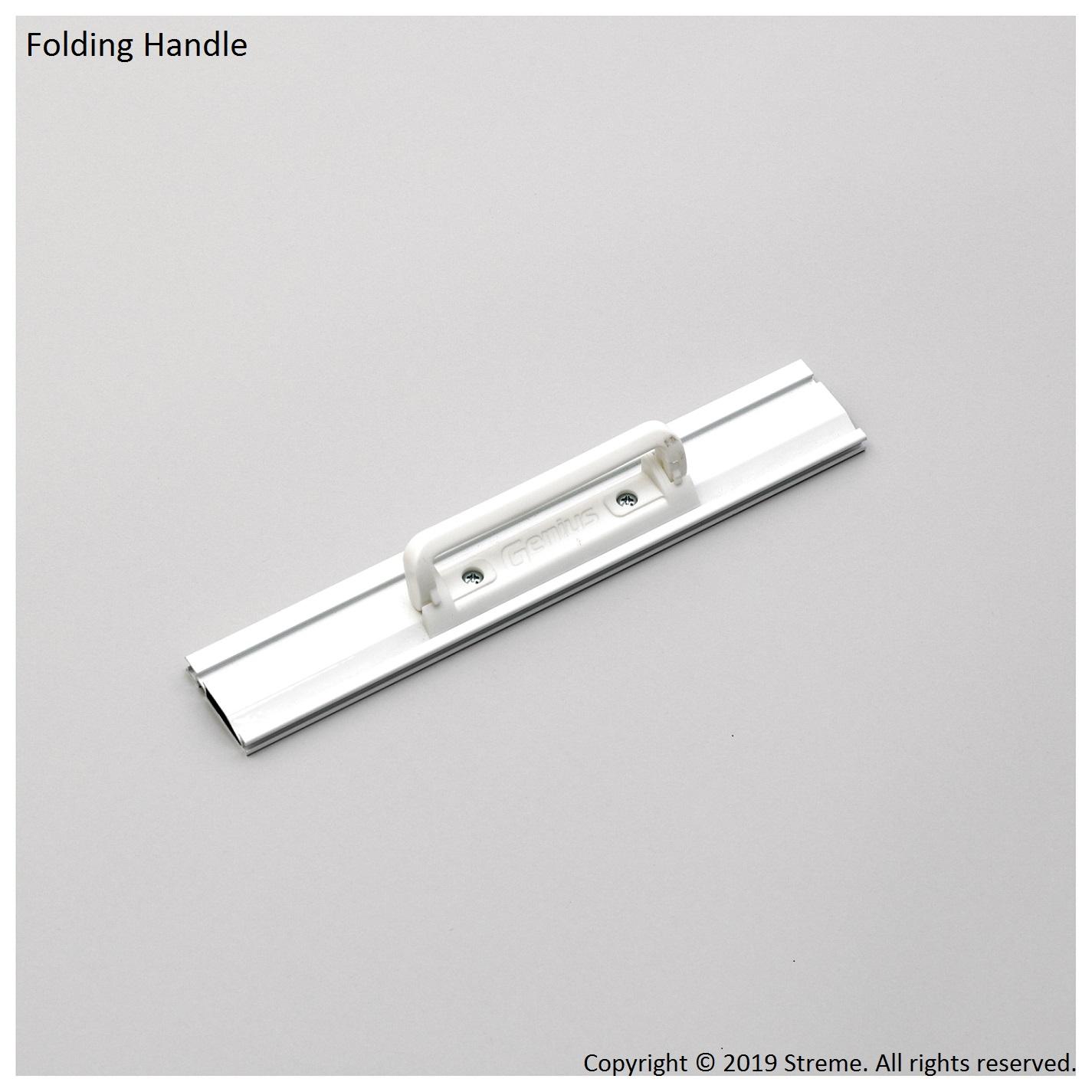

The screen is supplied with standard handles, which protrude past the back of the cassette by 10mm. In cases where the standard handle will contact the door frame, folding handles are available to fix on the rear on the screen. The additional cost is shown when this option is selected.
The size of the top and bottom guides are 40mm tall. An alternative 22mm bottom guide is available, however, we would suggest the 40mm guide is used in situations where the bottom guide is to be screwed into the door frame and there is enough depth of frame to accommodate it.
Single horizontal roller blind style pollen screen.
Offers effective protection against pollen from the outside air.
Keeps out flies, wasps, mosquitoes, midges, moths, midges and other unwanted insects.
Supplied pre-cut and ready to fit.
Includes all fixings required to fit the screen into into the reveal.
Alternative fixings available to fit the screen onto the window frame.
Options for cassette colour and fixings.
The pricing depends on the size of the screen, and is shown at the top of the page once the width and height have been entered.
Your screen will be supplied, so that when fitted, the overall screen size will match the dimensions entered in the boxes below.
PLEASE ENSURE THE DIMENSIONS ARE ENTERED IN MILLIMETRES (mm), see help on How to Measure and the conversion tool (top right) if required.
For larger screens please call us.
