Roller screens are made to the dimensions provided and shipped with fixings ready to install.
Print this page
This screen can be fitted in 2 ways. For each method of fixing we will show you:
How to measure

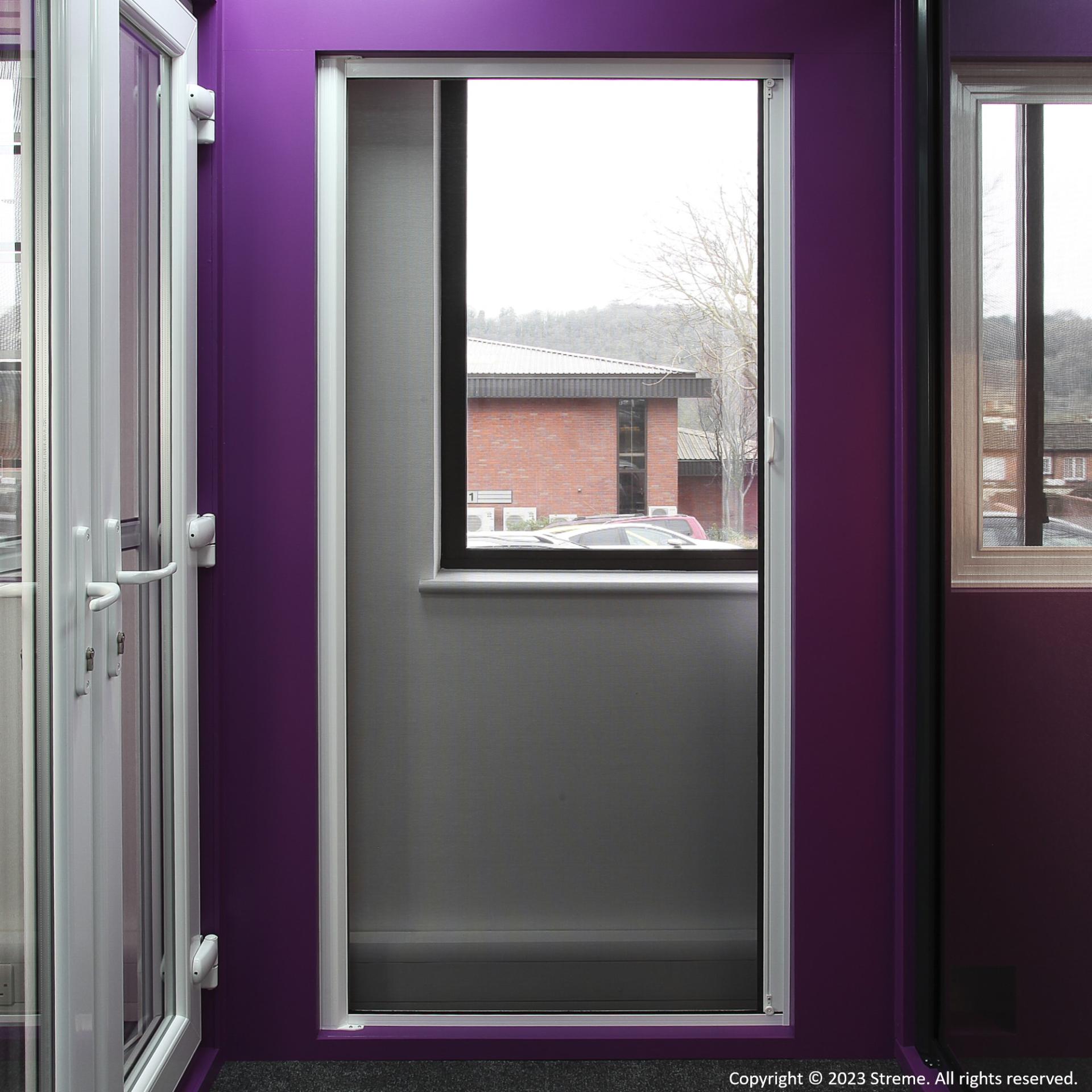

The cassette (51mm wide) is fitted into the top of the reveal and the floor using two tabs and screws - usually positioned on the same side as the door is hinged. The closing channel (22mm wide) is fitted to the opposite reveal wall using screws.

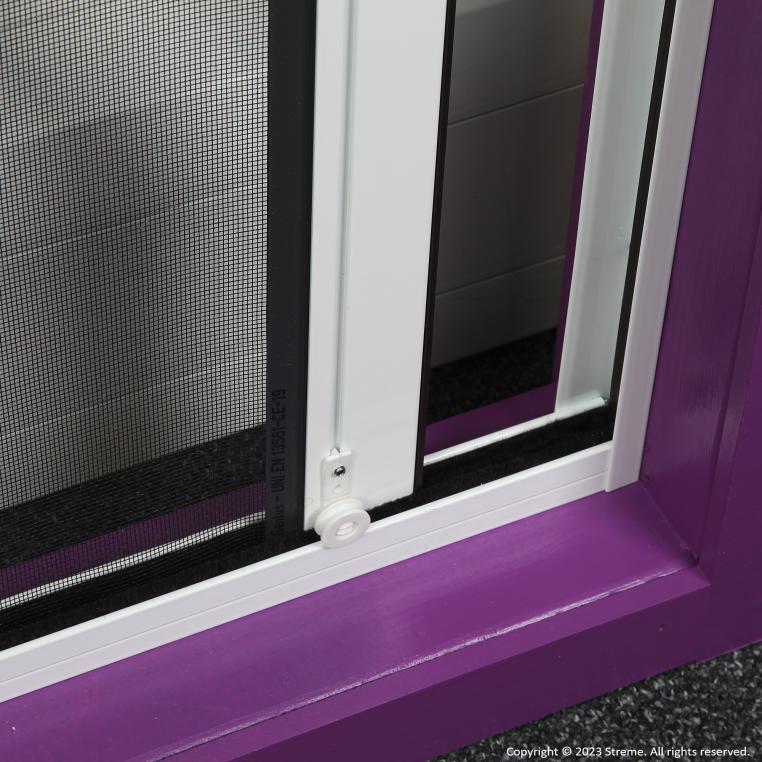

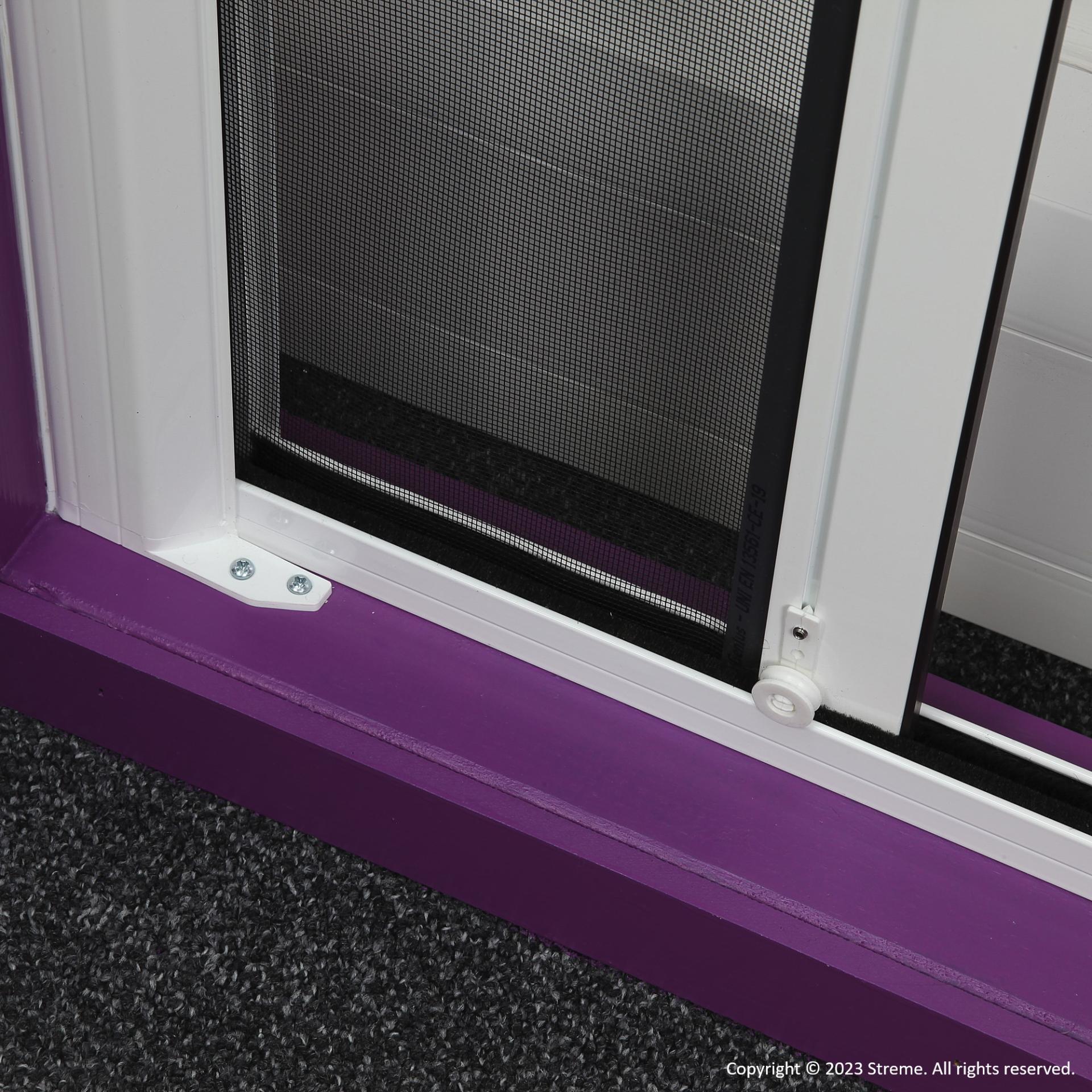

two guides (both 40mm high) are screwed into to the underside of the reveal and the floor. For low thresholds, a 22mm bottom guide is available. as an option.
We advise taking 3 measurements for both width (top, middle & bottom) and height (left, middle & right) to allow for any variations. In each case use the smallest measurements for your final width and height. We will make your screen to these sizes.
How to measure
The cassette is fitted to the side door frame (usually positioned on the side the door is hinged) using brackets fitted to the side of the cassette. The total width of the cassette + brackets is 66mm.
top and bottom guides (both 40mm high) slot into the ends the cassette and are fitted to the upper and lower door frames. For low thresholds, a 22mm bottom guide is available as an option.
The closing channel (22mm wide), is fitted directly to the door frame.on the opposite side of the door to the cassette.
We will make your screen with the maximum outer dimensions to be the measurements provided..
Single vertical roller blind style solar screen.
Reduces the sun's heat and glare by up to 65%, whether the door is open or closed
Keeps out flies, wasps, mosquitoes, midges, moths, midges and other unwanted insects.
Improves daytime privacy, whilst giving excellent outward visibility
Supplied made to measure.
Includes all fixings required to fit the screen into into the reveal.
Alternative fixings available to fit the screen onto the door frame.
Options for cassette colour and fixings.
The pricing depends on the size of the screen, and is shown at the top of the page once the width and height have been entered.
Your screen will be supplied, so that when fitted, the overall screen size will match the dimensions entered in the boxes below.
PLEASE ENSURE THE DIMENSIONS ARE ENTERED IN MILLIMETRES (mm), see help on How to Measure and the conversion tool (top right) if required.
For larger screens please call us.
