Made-to-Measure screens are made to the dimensions provided and shipped with fixings ready to install.
Print this page
Instructions below describe how to measure for both a standard casement and a traditional sliding sash window.
Use the drawings to give you the measurements for the width and height dimensions in the ‘get price’ tab:
Please ensure your measurements are entered in millimetres (mm),
Once you’ve placed your order we will contact you for measurements C, D, E & F before proceeding with the manufacture of your screen,
Please, also check your window carefully for any obstructions that need consideration when fitting your screen. These include….
If any of the above are present, please let us know, as alternative dimensions may be required.
Standard Casement Window – side or top opener
Sash Window - fitted to full sash
Fitted Externally so the screen can be left in place without interfering with the opening and closing of the window or fitted internally
Sash Window - fitted to top or bottom Sash
Fitted Internally to the lower or upper sash – Use the same principle for measuring either of the sashes
* The height of the screen can be the full height of the opening sash or the height to which you normally open your sash.
Depending on the style of your sash there may be a gap between frame D and the screen. This can be filled with UPVC trim, batten, adhesive pile seal or similar. Let us know if you need advice.
Print this page
We offer two types of mesh with this screen. Your choice will depend on which insects you wish to keep out and the type of use. Both meshes are fully compliant with food safety regulations.
Examples of insects this mesh will keep out: Bees & Wasps, Bluebottles, Cluster Flies, Crane Flies, Daddy-Long-Legs, House Flies, Hornets, Ladybirds, Mosquitoes, Moths, Butterflies and Spiders. Standard insect mesh is designed and manufactured to ensure maximum visibility (through the screen) ensuring as much light passes into the room as possible.
We recommend this mesh for all areas of the UK except in parts of Scotland where Midges are present and other parts of the UK where Corn Flies and Thunder Bugs/Thrips are present.
This mesh will keep out: The same as Standard insect mesh + Midges, Corn Flies and Thunder Bugs/Thrips
Midge mesh has a tighter weave than Standard insect mesh to ensure Midges, Corn Flies and Thunder Bugs/Thrips cannot penetrate, however the visibility and airflow is reduced slightly.
We recommend this mesh in parts of Scotland where Midges are present and other parts of the UK where Corn Flies and Thunder Bugs/Thrips are present. Please note - genuine Midge mesh is 30 x 20 - anything less e.g. 20 x 20 or 18 x 16 will not keep midges out.
Examples of insects this mesh will keep out:
Stainless steel insect mesh is highly durable and long lasting which makes it ideal for demanding commercial environments. This mesh is fully compliant with food safety regulations.

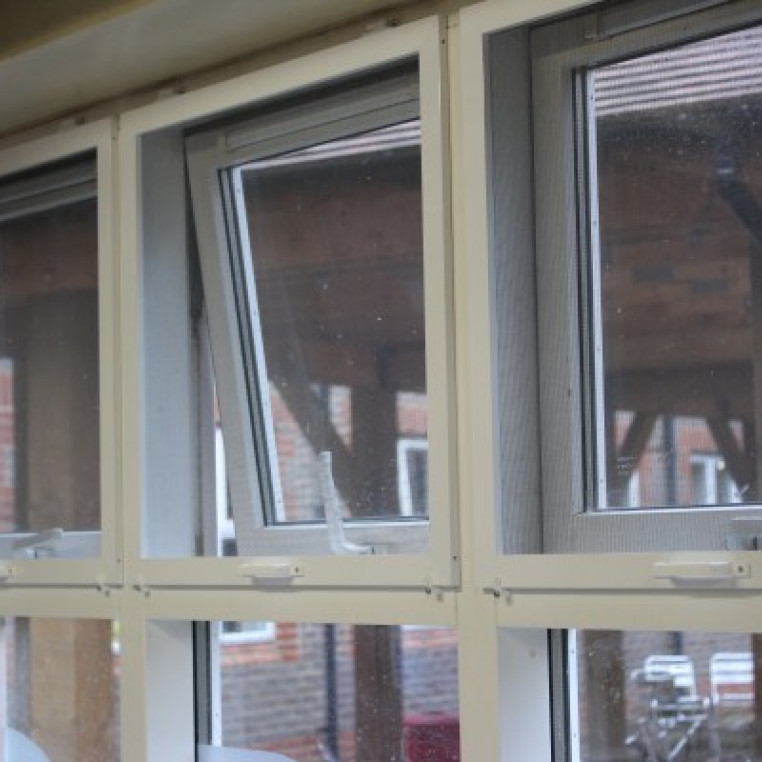

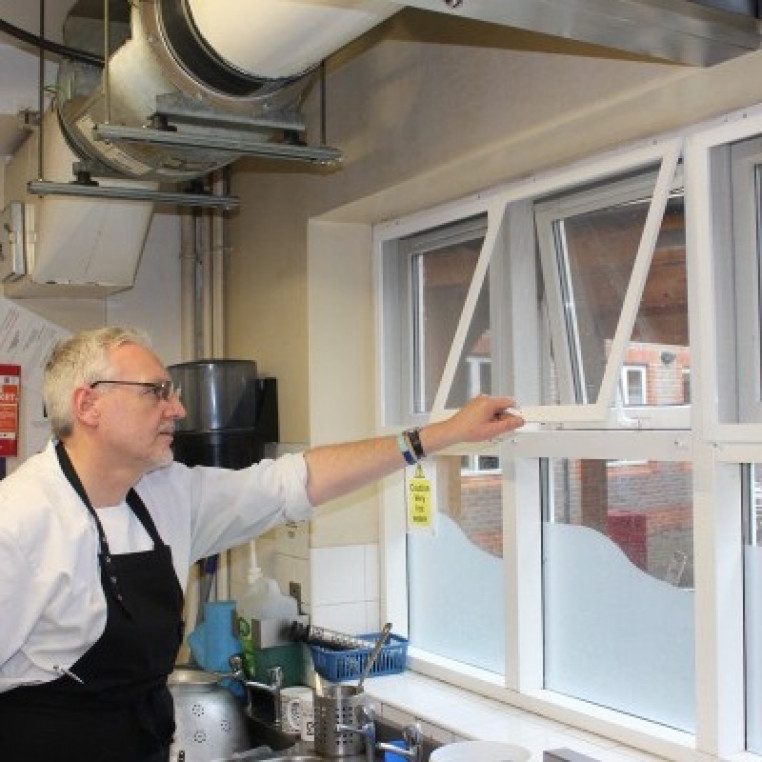

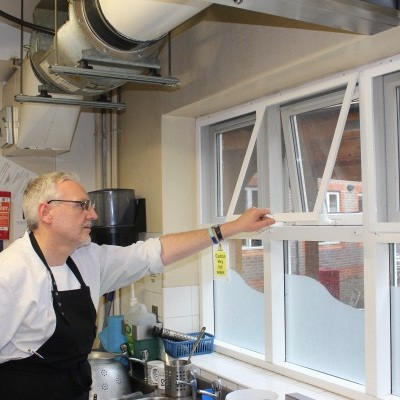

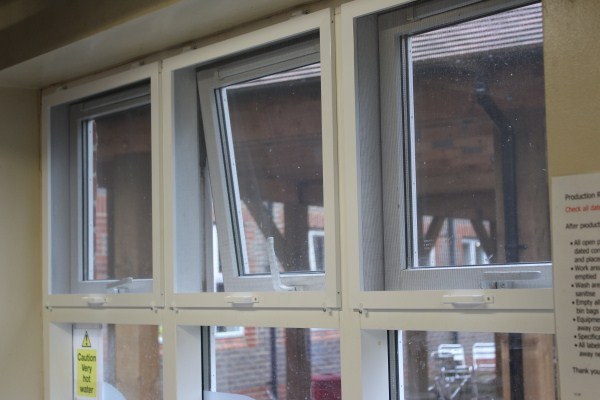

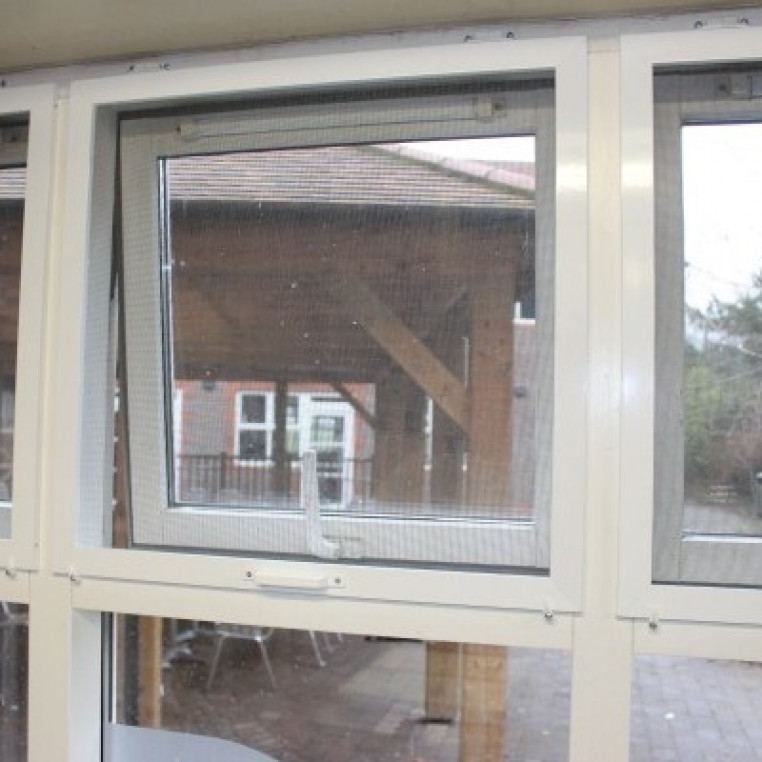

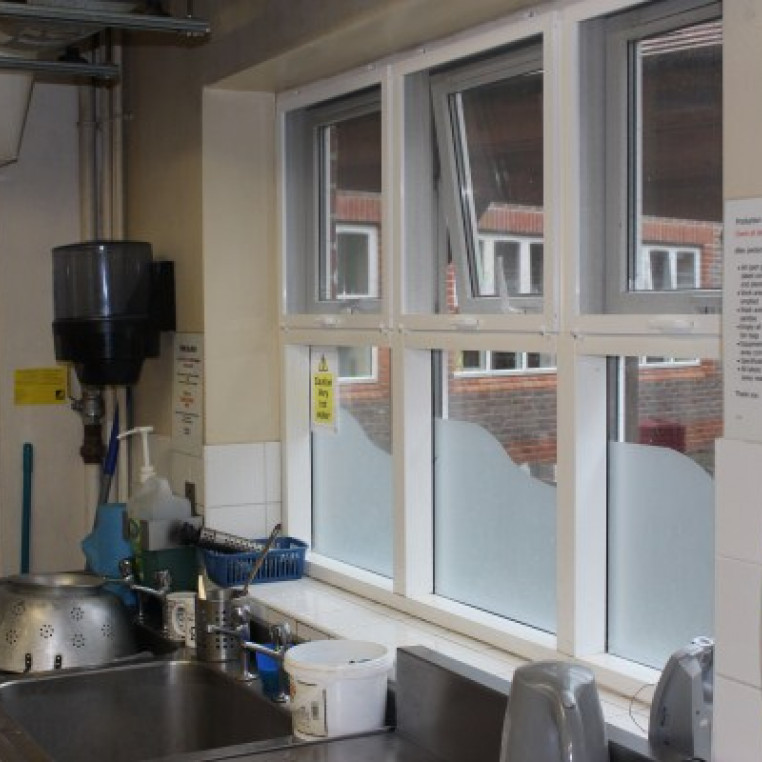

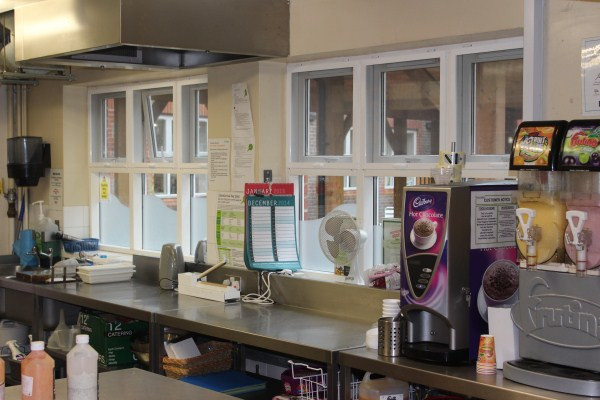

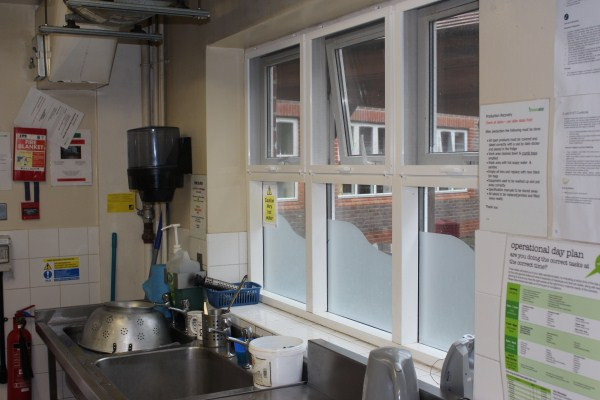

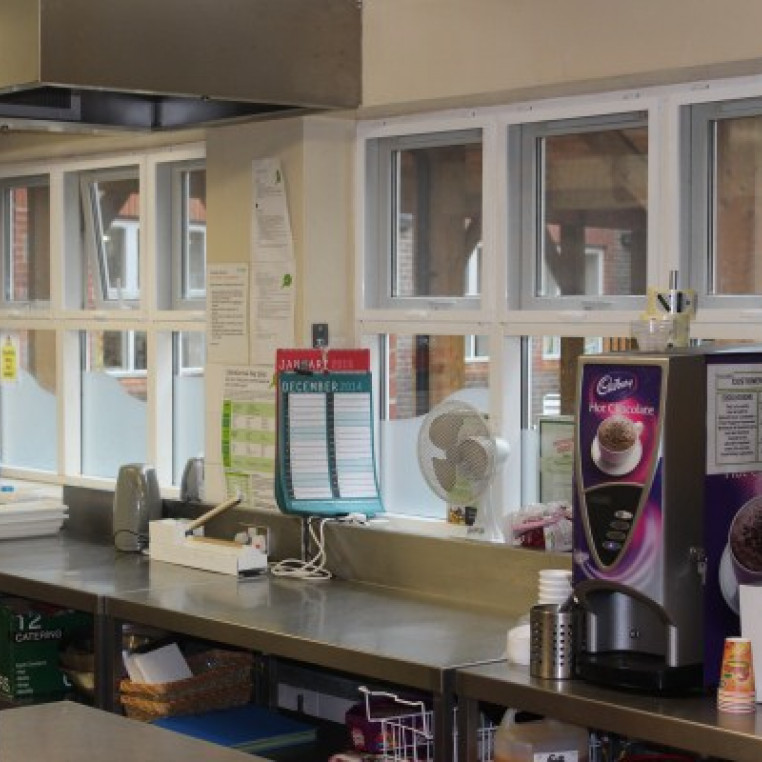

We recommend this mesh for screens in commercial kitchens, where regular screen cleaning is required and routine use may result in damage to a standard mesh.
The width of the screen frame that sits against your window frame is 19mm for the light duty frame and 30mm for the standard frame. It's not essential for the screen frame to fully overlap your window frame, but you should note that the hinge fixings and turn buttons sit to the side of the screen, so an allowance needs to be made for them. Please see dimensions below.
This fixing consists of a 2 part hinge, one part fixes to the edge of the screen and the other to your window frame. Both are screwed in position. The two hinge parts are connected with a pin which allows you to lift the screen off the hinge for cleaning or storage. The screen is held closed with turn buttons as shown in the second image below. The button is turned through 90 degrees to lock/release the screen. A handle is provided to assist with opening and closing the screen.
You will require 13mm of flat window frame space next to your screen to fit the hinges on one side and 8mm to fit the turn buttons on the other side. You will also require a 10mm allowance so that you can lift your screen off the hinges.
No drilling or screwing is required for this magnetic option. It consists of two, 13mm wide, self-adhesive magnetic strips, one adheres to your window frame, the other adheres to the back of the screen. As the strips are positioned within the width of the screen frame you don't need to make an allowance for this fitting.

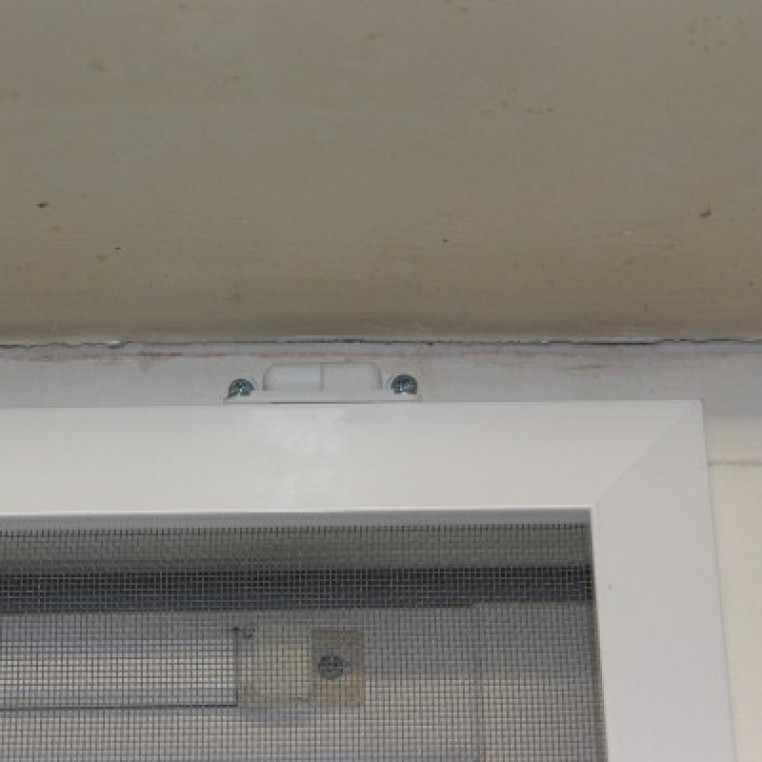

The screen is held closed with 'turn buttons' screwed into your framework to the side of the screen. The button turns through 90 degrees to lock/release the screen. You will require 8mm of flat frame space next to each side of your screen to fit the turn buttons.
Made to measure high quality and sturdy framed fly screen for windows, with standard insect mesh
Ideal for keeping out flies, wasps, bees, mosquitoes, spiders and other unwanted insects.
These screens comply with Food Safety General Hygene Regulations 1995.

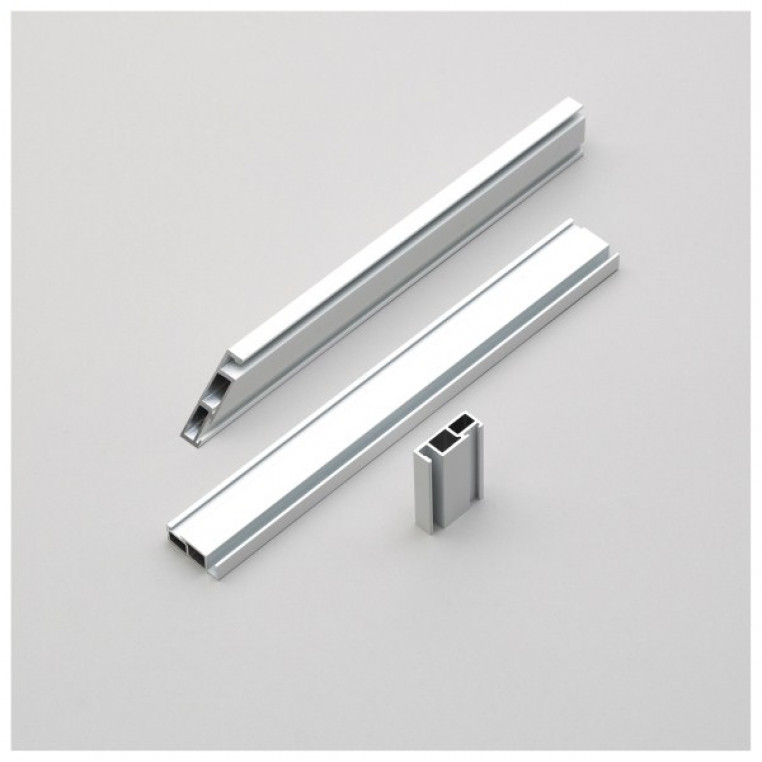

Screens are made to your dimensions using a high quality and sturdy aluminium powder coated frames and internal metal corners. All corners are crimped for long lasting strength and stability.
Enter your width and height to calculate your price.
