Window Pet Screen - Framed (Made-to-Measure)

IMPORTANT: Please use the HOW TO MEASURE tab to calculate dimensions

Print this page

The instructions below explain how to measure for both a standard casement and a traditional sliding sash window.

In both cases we provide you with 2 ordering options.  Please ensure your measurements are entered in millimetres (mm).

Option 1.  Make my screen to A & B dimensions

Provide us with A (the width) and B (the height) that you require the outer edge dimensions of your screen frame to be.  Make sure you have made any allowances for your fitting method . Use the mesh & fixings tab to help you.

Option 2. Make my screen using A to F dimensions

Provide us with the dimensions of your window opening and surrounding framework and let us calculate the size of the screen for you.

The attached video explains in detail how to measure but the drawings below may also help.  If you have any obstructions on your framework that you are unsure how to overcome please contact us.

Standard Casement Window – side or top opener

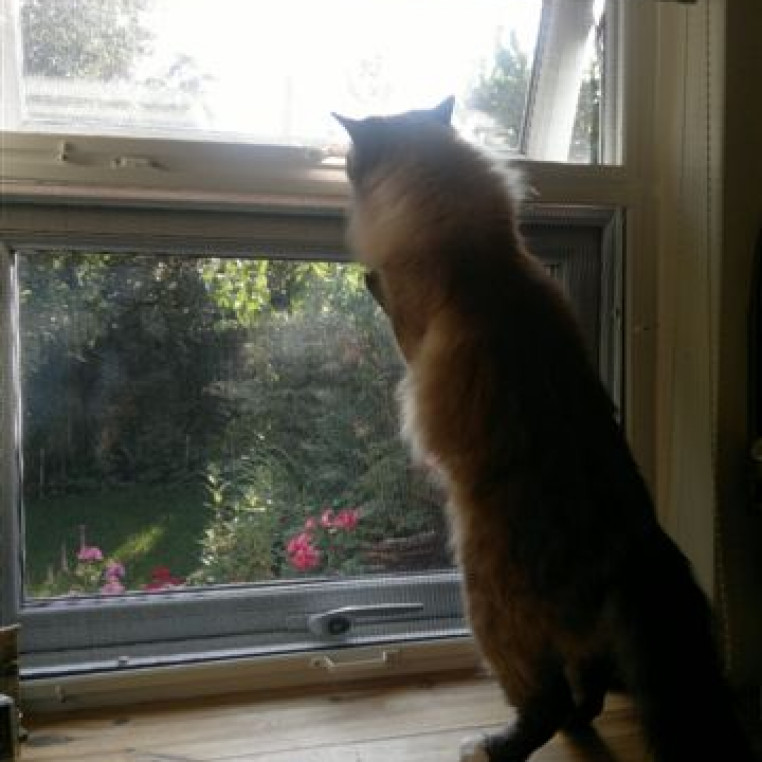

Sash Window

Fitted to full sash – usually externally

Fitted to top or bottom opening sash

Fitted Internally to the lower or upper sash – Use the same principle as above for measuring either of the sashes

* The height of the screen can be the full height of the opening sash or the height to which you normally open your sash.

Depending on the style of your sash there may be a gap between frame D and the screen. This can be filled with UPVC trim, batten, adhesive pile seal or similar depending on the depth. Let us know if you need advice.

Print this page

Fixings

The width of the screen frame that sits against your window frame is 19mm. It's not essential for the screen frame to fully overlap your window frame, but you should note that the hinge fixings and turn buttons sit to the side of the screen, so an allowance needs to be made for them. Please see dimensions below.

Lift on/off hinges with turn buttons

This fixing consists of a 2 part hinge, one part fixes to the edge of the screen and the other to your window frame. Both are screwed in position. The two hinge parts are connected with a pin which allows you to lift the screen off the hinge for cleaning or storage. The screen is held closed with turn buttons as shown in the second image below. The button is turned through 90 degrees to lock/release the screen.  A handle is provided to assist with opening and closing the screen.

You will require 13mm of flat window frame space next to your screen to fit the hinges on one side and 8mm to fit the turn buttons on the other side.  You will also require a 10mm allowance so that you can lift your screen off the hinges.

Please note: If your window handle protrudes past the framework when the window is closed just allow the screen to rest against the handle when not in use.  Once your window is open you will be able to close the screen flat against the window frame.

Magnetic strips

No drilling or screwing is required for this magnetic option. It consists of two, 13mm wide, self-adhesive magnetic strips, one adheres to your window frame, the other adheres to the back of the screen.  As the strips are positioned within the width of the screen frame you don't need to make an allowance for this fitting. The strip that adheres to your window frame is colour matched to blend in as much as possible. White for white frames and dark grey for brown or anthracite frames.

Please note: Your window handle may protrude past the framework when your window is closed.  If this is the case you can remove the screen when the window is shut.

Turn Buttons

The screen is held closed with 'turn buttons' screwed into your framework to the side of the screen. The button turns through 90 degrees to lock/release the screen.  You will require 8mm of flat frame space next to each side of your screen to fit the turn buttons.

Please note: Your window handle may protrude past the framework when your window is closed.  If this is the case you can remove the screen when the window is shut.
